EI1204 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K

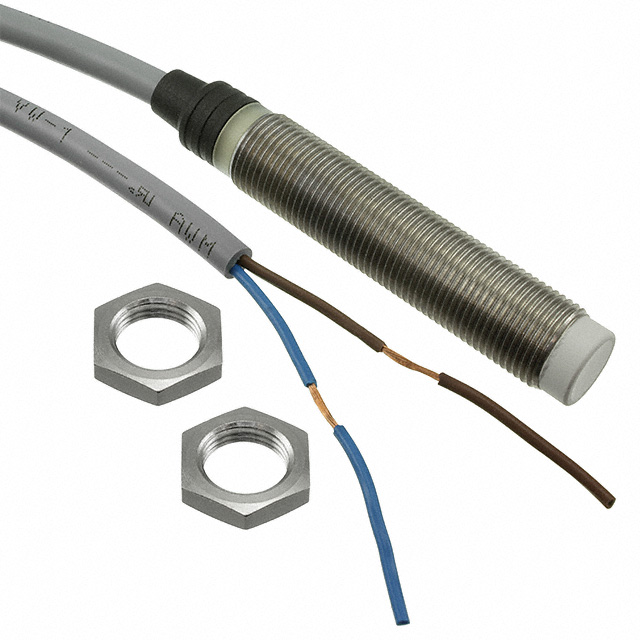

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, TYPE EI SERIES, M12, 4 MM, 20 TO 250 VAC, PRE-WIRED
| Part | Termination Style | Sensor Type | Shielding | Response Frequency | Output Type | Indicator | Sensing Distance | Sensing Distance | Voltage - Supply [Max] | Voltage - Supply [Min] | Ingress Protection | Package / Case | Material - Body | Operating Temperature [Min] | Operating Temperature [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | Cable Leads | Inductive | Unshielded | 25 Hz | 2-Wire SCR-NO | LED | 4 mm | 0.157 in | 240 VAC | 24 VAC | 1 13 3 4 6 IP67 | Cylinder Threaded - M12 | Stainless Steel | -25 °C | 70 °C | |

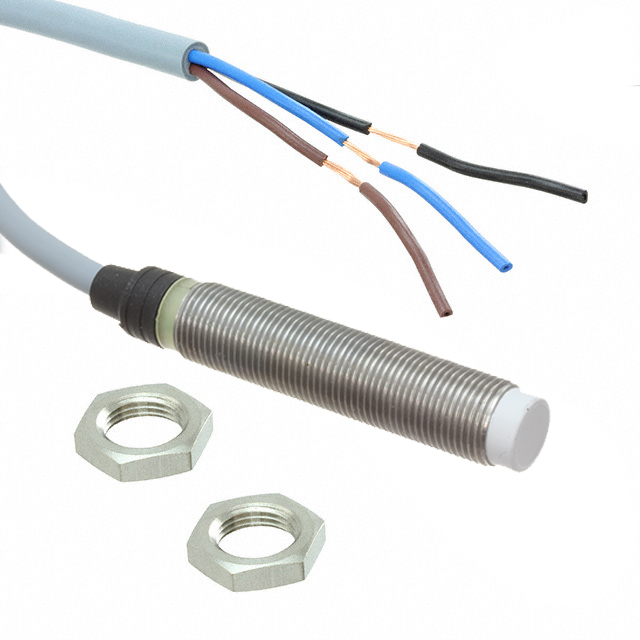

 Carlo Gavazzi Inc. | Connector | Inductive | Unshielded | 500 Hz | PNP-NC | LED | 4 mm | 0.157 in | 40 VDC | 10 VDC | 1 13 3 4 6 IP67 | Cylinder Threaded - M12 | Stainless Steel | -25 °C | 70 °C | 3 |
 Carlo Gavazzi Inc. | Connector | Inductive | Unshielded | 500 Hz | PNP-NO | LED | 4 mm | 0.157 in | 40 VDC | 10 VDC | 1 13 3 4 6 IP67 | Cylinder Threaded - M12 | Stainless Steel | -25 °C | 70 °C | 3 |
 Carlo Gavazzi Inc. | Connector | Inductive | Unshielded | 500 Hz | 3-Wire NPN-NC | LED | 4 mm | 0.157 in | 40 VDC | 10 VDC | 1 13 3 4 6 IP67 | Cylinder Threaded - M12 | Stainless Steel | -25 °C | 70 °C |
