SPV Series
Manufacturer: Phoenix Contact
Beta
⌘K
DIN RAIL TERMINAL BLOCKS SPV 2.5/1-R
| Part | Housing Material | Material Flammability Rating | Insulation Height [custom] | Insulation Height [custom] | Wire Strip Length | Voltage - IEC | Color | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Number of Levels | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Features | Current - IEC | Termination Style | Positions Per Level | Current - UL | Plug Wire Entry | Number of Positions | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | UL94 V-0 | 34 mm | 1.339 in | 10 mm | 500 V | Gray | 12 AWG | 26 AWG | 1 | 0.08 mm² | 4 mm² | Interlocking (Side) | 24 A | Screwless - Spring Cage Tension Clamp | 1 | 20 A | 90 ° | 1 | Plug Female Sockets | Free Hanging (In-Line) |

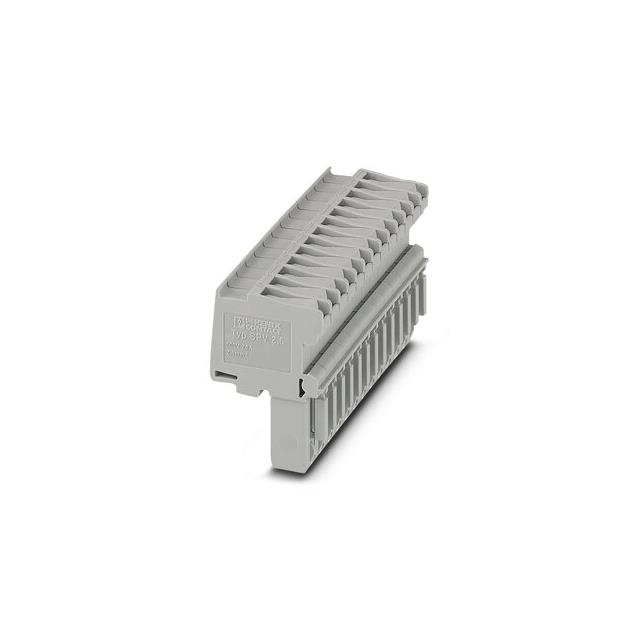

 Phoenix Contact | 500 V | Gray | 12 AWG | 26 AWG | 1 | 0.08 mm² | 4 mm² | 24 A | Screwless - Spring Cage Tension Clamp | 13 | 20 A | 90 ° | 13 | Plug Female Sockets | Free Hanging (In-Line) |
