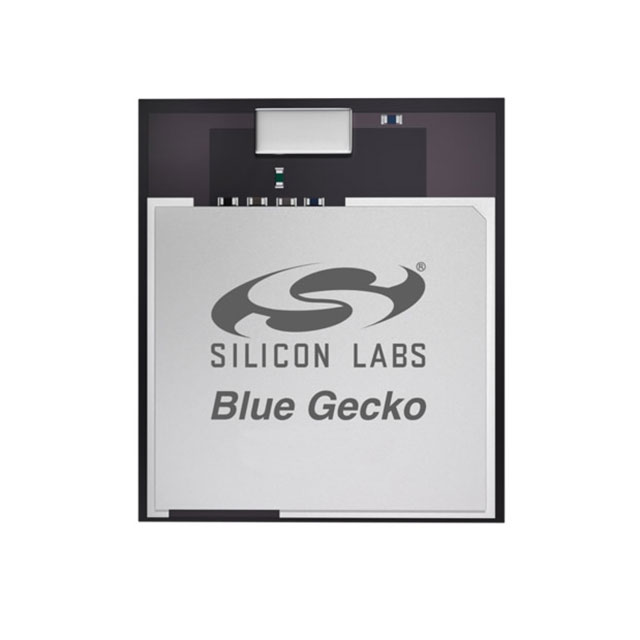

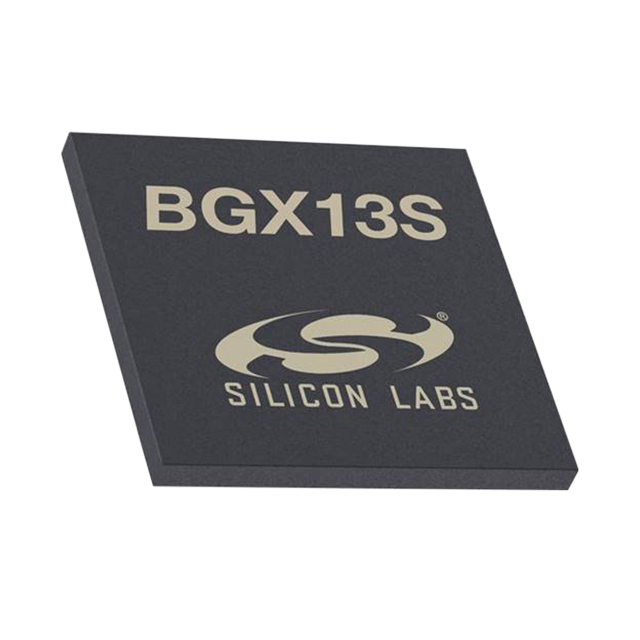

BGX13S22 Series
Manufacturer: SILICON LABS
Beta
⌘K
RF TXRX MOD BLUETOOTH CHIP SMD
| Part | Mounting Type | Package / Case | Sensitivity | Data Rate | Current - Transmitting [Min] | Current - Transmitting [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Utilized IC / Part | Serial Interfaces | Frequency [Max] | Frequency [Min] | Operating Temperature [Max] | Operating Temperature [Min] | RF Family/Standard | Modulation | Protocol | Power - Output | Antenna Type | Current - Receiving [Max] | Current - Receiving [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SILICON LABS | Surface Mount | 51-SMD Module | -94.1 dBm | 2 MBd | 3.5 mA | 7 mA | 3.8 V | 2.4 V | BGX13S | UART USART | 2.4835 GHz | 2.4 GHz | 85 C | -40 ¯C | Bluetooth | GFSK | Bluetooth v5.0 | 8 dBm | Chip Integrated | 7 mA | 3.5 mA |
 SILICON LABS |
