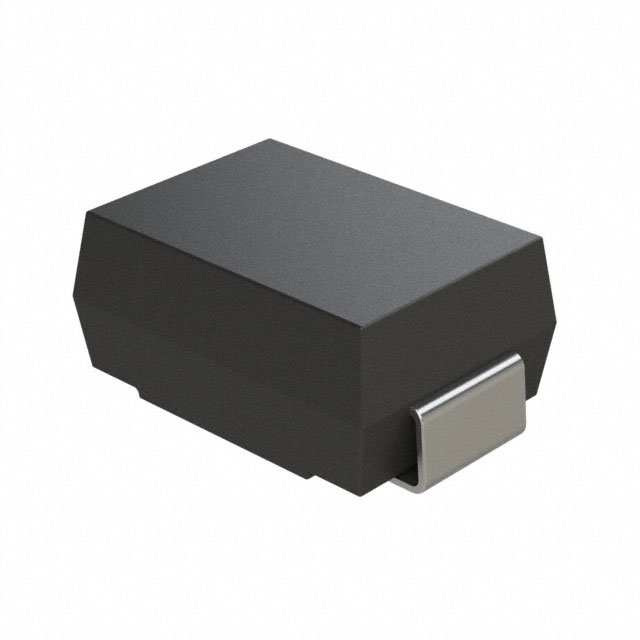

1.5SMB56CA Series

TVS 1500W 100V 5%UNI DO-214AA TR13 RoHS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

TVS 1500W 100V 5%UNI DO-214AA TR13 RoHS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Power - Peak Pulse	Power - Peak Pulse	Mounting Type	Supplier Device Package	Type	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Littelfuse/Commercial Vehicle Products 1.5SMB51CA	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	21.7 A	1	70.1 V	48.5 V	43.6 V
Littelfuse/Commercial Vehicle Products 1.5SMB47A	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	23.5 A		64.8 V	44.7 V	40.2 V	1
Littelfuse/Commercial Vehicle Products 1.5SMB27A	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener				25.7 V	23.1 V	1	37.5 V
Littelfuse/Commercial Vehicle Products 1.5SMB62CA	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	17.9 A	1	85 V	58.9 V	53 V
Littelfuse/Commercial Vehicle Products 1.5SMB33A	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	183.2 A			31.4 V	28.2 V	1	59 V
Littelfuse/Commercial Vehicle Products 1.5SMB100A	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	11.1 A			95 V	85.5 V	1	137 V
Littelfuse/Commercial Vehicle Products 1.5SMB82CA	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	13.5 A	1	113 V	77.9 V	70.1 V
Littelfuse/Commercial Vehicle Products 1.5SMB22CA	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	49.7 A	1		20.9 V	18.8 V		30.6 V
Littelfuse/Commercial Vehicle Products 1.5SMB82A	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	13.5 A		113 V	77.9 V	70.1 V	1
Littelfuse/Commercial Vehicle Products 1.5SMB23A	150 °C	-65 °C	DO-214AA SMB	Telecom	1.5 kW	1500 W	Surface Mount	DO-214AA (SMBJ)	Zener	45 A		33.2 V	22 V	20 V	1

Catalog

TVS 1500W 100V 5%UNI DO-214AA TR13 RoHS

Key Features

• For surface mounted applications to optimize board space

• Low profile package

• Typical failure mode is short from over-specified voltage or current

• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

• ESD protection of data lines in accordance with IEC 61000-4-2, 30 kV (Air), 30 kV (Contact)

• EFT protection of data lines in accordance with IEC 61000-4-4

• Built-in strain relief

• Glass passivated chip junction

• 1.5 kW peak pulse power capability at 10/1000μs, repetition rate (duty cycles): 0.01 %

• VBR @ TJ= VBR@25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)

Description

The 1.5SMB Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. 1.5kW in DO-214AA Package, high current density in small footprint.
