M2015TJ Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 6A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Switch Function | Current Rating (Amps) | Circuit | Voltage Rating - AC | Voltage Rating - DC | Features | Mounting Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Approval Agency | Actuator Type | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave | Red | ||
 NKK Switches | 50000 Cycles | 50000 Cycles | 18.4 mm | 15.9 mm | On-Mom | 0.4 VA | SPDT | 28 V | 28 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Quick Connect - 0.062" (1.5mm) | CSA UL | Concave (Standard V) - Illuminated | Blue | LED Yellow | 2 VDC |

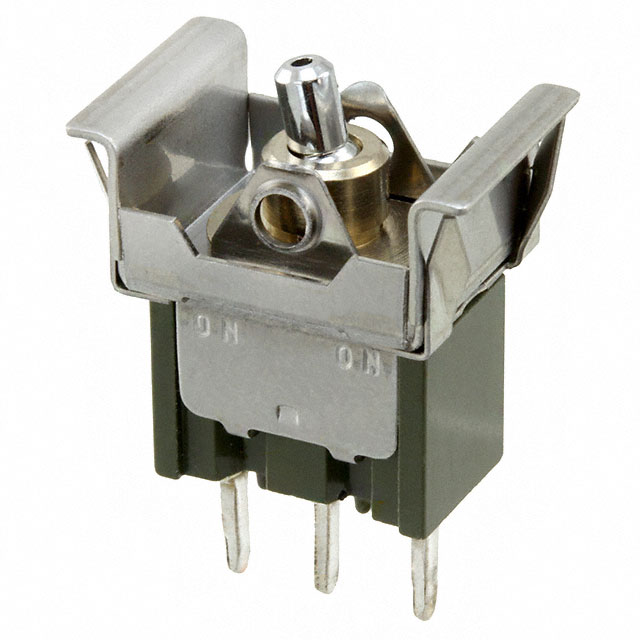

 NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | Varies by Cap | 85 °C | -30 ░C | PC Pin | CSA UL | Actuator Arm Cap Required | |||
NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave | Green | ||
 NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave | Black | ||

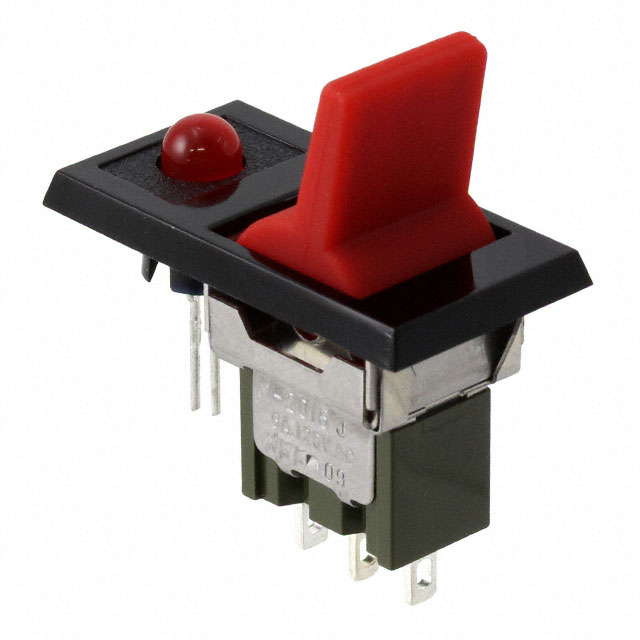

 NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Paddle - Illuminated | Red | LED Red | 2.8 VDC |
NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave | Blue | ||
NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave (Standard V) - Illuminated | Red | LED Red | 2.8 VDC |
NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave | White | ||
NKK Switches | 50000 Cycles | 25000 Steps | 15.9 mm | 12.5 mm | On-Mom | 3 A 6 A | SPDT | 125 V | 30 V | Epoxy Sealed Terminals | Panel Mount Snap-In | No Marking | 85 °C | -30 ░C | Solder Lug | CSA UL | Concave (Standard V) - Illuminated | Black | LED Red | 2.8 VDC |
