DC1C Series

Catalog

MICROSWITCH, SUBMINIATURE, ROLLER LEVER, SPDT, SOLDER, 5 A, 48 VDC

Part	Pretravel	Pretravel	Operating Position	Operating Position	Actuator Type	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Operating Force	Ingress Protection	Differential Travel	Differential Travel	Switch Function	Voltage Rating - DC	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Circuit	Termination Style	Electrical Life	Pretravel
ZF Electronics DC1C-A1RB	4.5 mm	0.178 in	0.622 in	15.8 mm	Lever Roller	Chassis Mount	125 V	120 °C	-40 C	1 A 5 A	92 gf	IP67 - Dust Tight Waterproof	0.5 mm	0.02 in	On-Mom	48 V	1000000 Cycles	0.06 "	1.5 mm	SPDT	Solder Lug	6000 Cycles
ZF Electronics DC1C-A1AA		1 mm	0.33 in	8.4 mm	Round (Pin Plunger)	Chassis Mount	125 V	120 °C	-40 C	1 A 5 A	204 gf	IP67 - Dust Tight Waterproof	0.1 mm	0.004 in	On-Mom	48 V	1000000 Cycles	0.025 in	0.6 mm	SPDT	Solder Lug	6000 Cycles	0.04 in

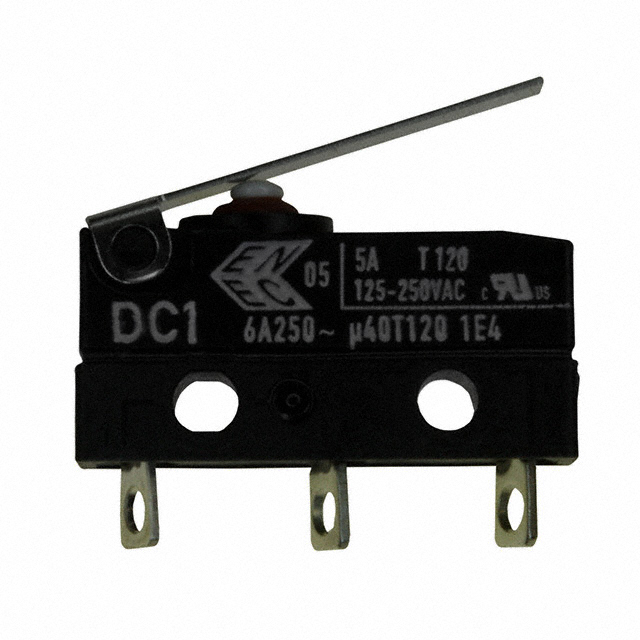

ZF Electronics DC1C-A1LB	4.5 mm	0.178 in			Lever Straight	Chassis Mount	125 V	120 °C	-40 C	1 A 5 A	82 gf	IP67 - Dust Tight Waterproof	0.5 mm	0.02 in	On-Mom	48 V	1000000 Cycles	0.06 "	1.5 mm	SPDT	Solder Lug	6000 Cycles
