857-052 Series
Manufacturer: EDAC Inc.
Beta
⌘K

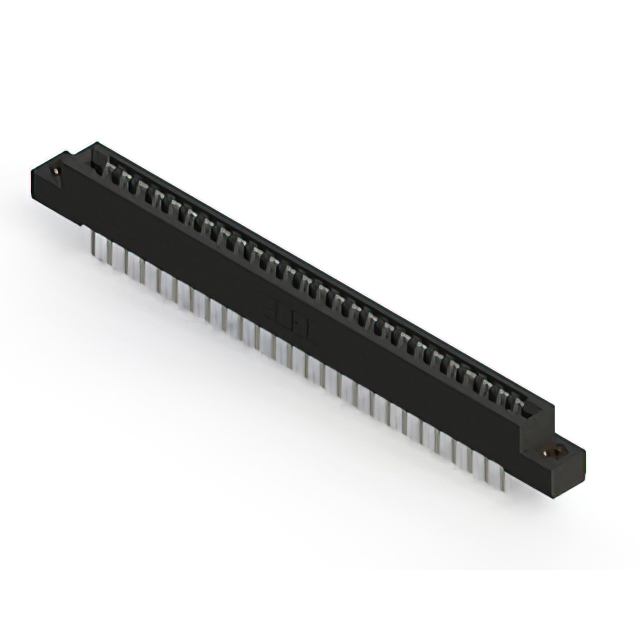

CONN EDGE DUAL FMALE 52POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Gender | Mounting Type | Number of Positions/Bay/Row | Contact Type | Termination | Contact Finish | Color | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Contact Material | Read Out | Number of Positions | Card Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Right Angle Through Hole | 26 | Semi Bellows | Solder | Tin | Black | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Single | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Wire Wrap | Gold | Black | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Solder Eyelet(s) | Tin | Black | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Right Angle Through Hole | 26 | Semi Bellows | Solder | Tin | Black | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Single | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Wire Wrap | Gold | Black | Floating Bobbin Flush Mount | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Board Edge Straddle Mount | 26 | Semi Bellows | Solder | Gold | Black | Side Mount Opening Unthreaded | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | Card Extender |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Wire Wrap | Tin | Black | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Wire Wrap | Tin | Black | Flush Mount Top Opening Unthreaded | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Wire Wrap | Tin | Black | Floating Bobbin Flush Mount | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Female | Through Hole | 26 | Semi Bellows | Solder Eyelet(s) | Gold | Black | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | Dual | 52 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin |
