UCC21551 Series

4A/6A 5kVRMS dual-channel isolated gate driver with EN and DT pins for IGBT and SiC

Catalog

4A/6A 5kVRMS dual-channel isolated gate driver with EN and DT pins for IGBT and SiC

Part	Rise / Fall Time (Typ)	Common Mode Transient Immunity (Min) [Min]	Mounting Type	Current - Peak Output	Number of Channels	Package / Case	Package / Case [x]	Package / Case [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Pulse Width Distortion (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Propagation Delay tpLH / tpHL (Max)	Technology	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Approval Agency	Package / Case	Package / Case	Supplier Device Package	Supplied Contents	Function	Utilized IC / Part	Type	Primary Attributes [custom]	Contents
Texas Instruments UCC21551CDWKR	8 ns	125 V/ns	Surface Mount	4 A 6 A	2	14-SOIC	0.295 in	7.5 mm	6 A	4 A	6 ns	-40 C	150 °C	45 ns	Capacitive Coupling	13.5 V	25 V	IEC/EN/DIN UL VDE
Texas Instruments UCC21551ADWKR	8 ns	125 V/ns	Surface Mount	4 A 6 A	2	14-SOIC	0.295 in	7.5 mm	6 A	4 A	5 ns	-40 C	150 °C	45 ns	Capacitive Coupling	6.5 V	25 V	CQC CSA UL VDE
Texas Instruments UCC21551ADWR	8 ns	125 V/ns	Surface Mount	4 A 6 A	2	16-SOIC			6 A	4 A	5 ns	-40 C	150 °C	45 ns	Capacitive Coupling	6.5 V	25 V	CQC CSA UL VDE	7.5 mm	0.295 "	16-SOIC

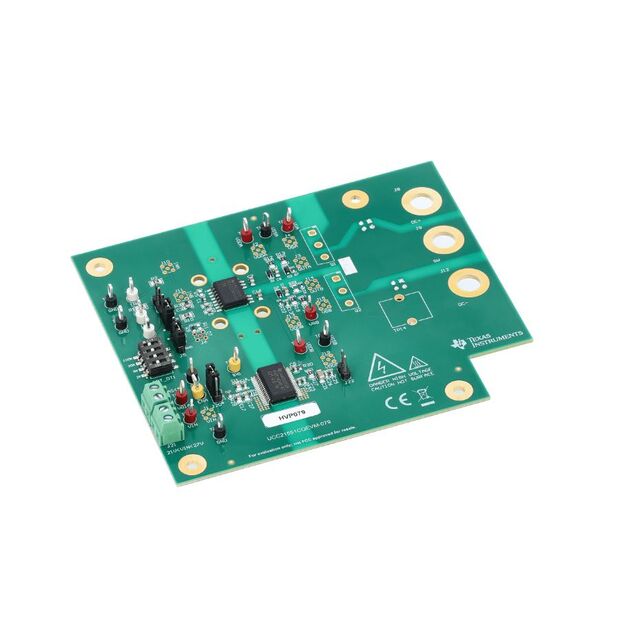

Texas Instruments UCC21551CQEVM-079																						Board(s)	Gate Driver	UCC21551	Power Management	2-Channel (Dual)	Board(s)
Texas Instruments UCC21551BDWKR	8 ns	125 V/ns	Surface Mount	4 A 6 A	2	14-SOIC	0.295 in	7.5 mm	6 A	4 A	5 ns	-40 C	150 °C	45 ns	Capacitive Coupling	9.2 V	25 V	IEC/EN/DIN UL VDE
Texas Instruments UCC21551DDWKR	8 ns	125 V/ns	Surface Mount	4 A 6 A	2	14-SOIC	0.295 in	7.5 mm	6 A	4 A	5 ns	-40 C	150 °C	45 ns	Capacitive Coupling	19 V	25 V	CQC CSA UL VDE

Catalog

4A/6A 5kVRMS dual-channel isolated gate driver with EN and DT pins for IGBT and SiC

Description

The UCC21551x is an isolated dual channel gate driver family with programmable dead time and wide temperature range. It is designed with 4A peak-source and 6A peak-sink current to drive power MOSFET, SiC, and IGBT transistors. The UCC21551x can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver. The input side is isolated from the two output drivers by a 5kVRMS isolation barrier, with a minimum of 125V/ns common-mode transient immunity (CMTI). Protection features include: resistor programmable dead time, disable feature to shut down both outputs simultaneously, and integrated de-glitch filter that rejects input transients shorter than 5ns. All supplies have UVLO protection. With all these advanced features, the UCC21551x device enables high efficiency, high power density, and robustness in a wide variety of power applications. The UCC21551x is an isolated dual channel gate driver family with programmable dead time and wide temperature range. It is designed with 4A peak-source and 6A peak-sink current to drive power MOSFET, SiC, and IGBT transistors. The UCC21551x can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver. The input side is isolated from the two output drivers by a 5kVRMS isolation barrier, with a minimum of 125V/ns common-mode transient immunity (CMTI). Protection features include: resistor programmable dead time, disable feature to shut down both outputs simultaneously, and integrated de-glitch filter that rejects input transients shorter than 5ns. All supplies have UVLO protection. With all these advanced features, the UCC21551x device enables high efficiency, high power density, and robustness in a wide variety of power applications.
