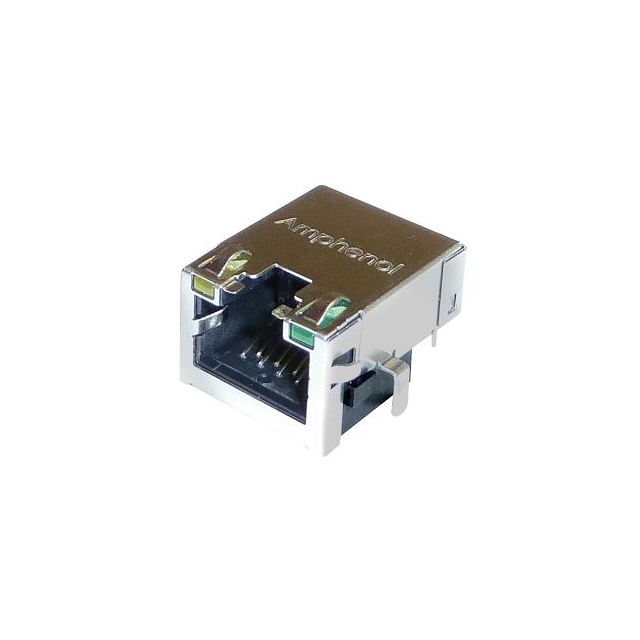

RJE7218 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
8P8C, RA, CAT5E, SHIELD WITH NO
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Tab Direction | Mounting Type | Number of Ports | Orientation | Shielding | Number of Positions/Contacts | Ratings | LED Color | Contact Material | Termination | Connector Type | Number of Rows | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Up | Board Edge Panel Mount Through Hole | 1 | 90 ° | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | Cat5e | Green Yellow | Phosphor Bronze | Solder | Jack | 1 | Gold |
Amphenol ICC (Commercial Products) | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Up | Board Edge Panel Mount Through Hole | 1 | 90 ° | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | Cat5e | Green - Yellow | Phosphor Bronze | Solder | Jack | 1 | Gold |
Amphenol ICC (Commercial Products) | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Up | Board Edge Panel Mount Through Hole | 1 | 90 ° | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | Cat5e | Green Yellow | Phosphor Bronze | Solder | Jack | 1 | Gold |
