8312 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 6V TO 12.6V 47.1CFM 48DB 80 X 80 X 32MM HIGH SPEED

Part	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Air Flow	Air Flow	Fan Type	Voltage - Rated	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Power (Watts)	Approval Agency	Termination	Width [y]	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure
ebm-papst Inc. 8312H	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	7 V	12.6 VDC	40 °C 50000 Hrs	1.32 m³/min	47.1 CFM	Tubeaxial	12 VDC	48 dB	60 °C	60 °C	-4 °F	-20 ░C	5000 RPM	5.5 W	CE CSA UL VDE	2 Wire Leads	32 mm	Ball	80 mm	80 mm	0.375 lb	170.1 g
ebm-papst Inc. 8312HL	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	6 VDC	15 V	62500 Hrs	1.1 m³/min	39.4 CFM	Tubeaxial	12 VDC	43 dB		167 °F		-4 °F	4200 RPM	4 W	CE CSA UL VDE	2 Wire Leads	32 mm	Ball	80 mm	80 mm	0.375 lb	170.1 g

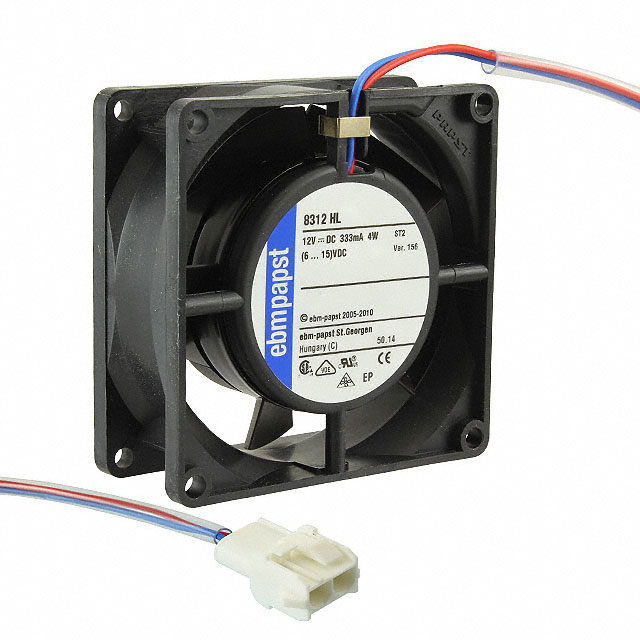

ebm-papst Inc. 8312HL-156	Plastic	Plastic	6 VDC	15 V	62500 Hrs	1.11 m³/min	39.5 CFM	Tubeaxial	12 VDC	43 dB		167 °F		-4 °F	4200 RPM	4 W	CE CSA UL VDE	2 Position Rectangular Connector	32 mm	Ball	80 mm	80 mm	0.375 lb	170.1 g	100 Pa	0.401 in H2O
