292133 Series

Catalog

CONN HEADER VERT 3POS 2MM

Part	Pitch - Mating [x]	Pitch - Mating [x]	Applications	Contact Material	Material Flammability Rating	Voltage Rating	Mounting Type	Number of Positions Loaded	Style	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Termination	Shrouding	Insulation Material	Current Rating (Amps)	Connector Type	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Type	Contact Finish - Post
TE Connectivity Raychem Cable Protection 6-292133-3	0.079 in	2 mm	General Purpose	Brass	UL94 V-0	125 VAC	Through Hole	All	Board to Cable/Wire	Black	3.2 mm	0.126 in	Solder	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	Varies by Wire Gauge	Header	Detent Lock	Circular	6.8 mm	0.268 in	4.2 mm	0.165 in	1	9.09 mm	0.358 in	Male Pin	Tin
TE Connectivity Raychem Cable Protection 2-292133-3	0.079 in	2 mm	General Purpose	Brass	UL94 V-0	125 VAC	Through Hole	All	Board to Cable/Wire	Blue	3.2 mm	0.126 in	Solder	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	Varies by Wire Gauge	Header	Detent Lock	Circular	6.8 mm	0.268 in	4.2 mm	0.165 in	1	9.09 mm	0.358 in	Male Pin	Tin

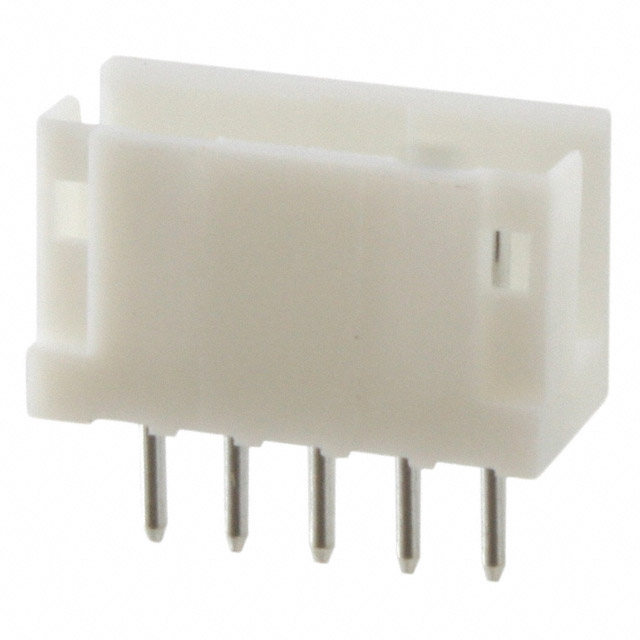

TE Connectivity Raychem Cable Protection 292133-5	0.079 in	2 mm	General Purpose	Brass	UL94 V-0	125 VAC	Through Hole	All	Board to Cable/Wire	Natural	3.2 mm	0.126 in	Solder	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	Varies by Wire Gauge	Header	Detent Lock	Circular	6.8 mm	0.268 in	4.2 mm	0.165 in	1	9.09 mm	0.358 in	Male Pin	Tin
