S8B-PH-K Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

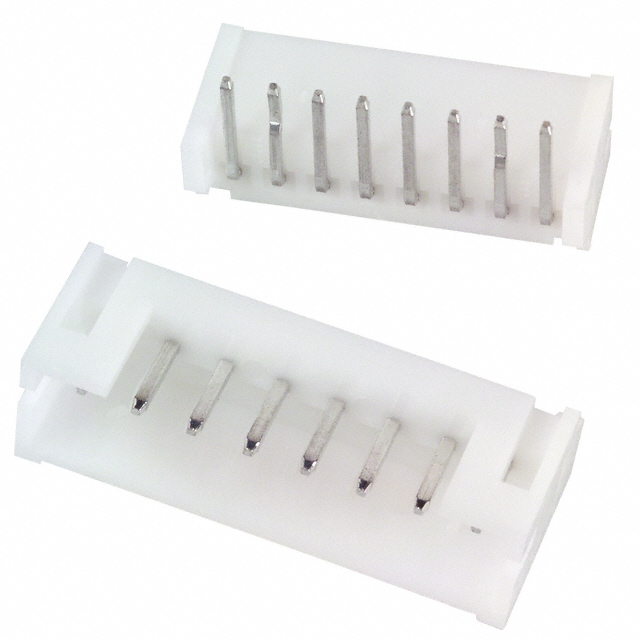

CONN HEADER R/A 8POS 2MM
| Part | Contact Type | Mounting Type | Pitch - Mating | Pitch - Mating | Fastening Type | Material Flammability Rating | Current Rating (Amps) | Style | Contact Shape | Contact Material | Contact Finish - Post | Insulation Material | Number of Positions | Termination | Voltage Rating | Insulation Color | Connector Type | Number of Positions Loaded | Number of Rows | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Contact Length - Post [x] | Contact Length - Post | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Male Pin | Right Angle Through Hole | 0.079 " | 2 mm | Detent Lock | UL94 V-0 | 2 A | Board to Cable/Wire | Square | Copper Alloy | Tin | Nylon 6/6 Polyamide (PA66) | 8 | Press-Fit Solder | 100 V | Gray | Header | All | 1 | 4.8 mm | 0.189 in | 85 °C | -25 °C | Shrouded - 4 Wall | 0.134 " | 3.4 mm | ||
 JST Sales America Inc. | Male Pin | Right Angle Through Hole | 0.079 " | 2 mm | Detent Lock | UL94 V-0 | 2 A | Board to Cable/Wire | Square | Brass | Tin | Nylon 6/6 Polyamide (PA66) | 8 | Press-Fit Solder | 100 V | Natural | Header | All | 1 | 4.8 mm | 0.189 in | 85 °C | -25 °C | Shrouded - 4 Wall | 0.134 " | 3.4 mm | 0.13 in | 3.3 mm |
