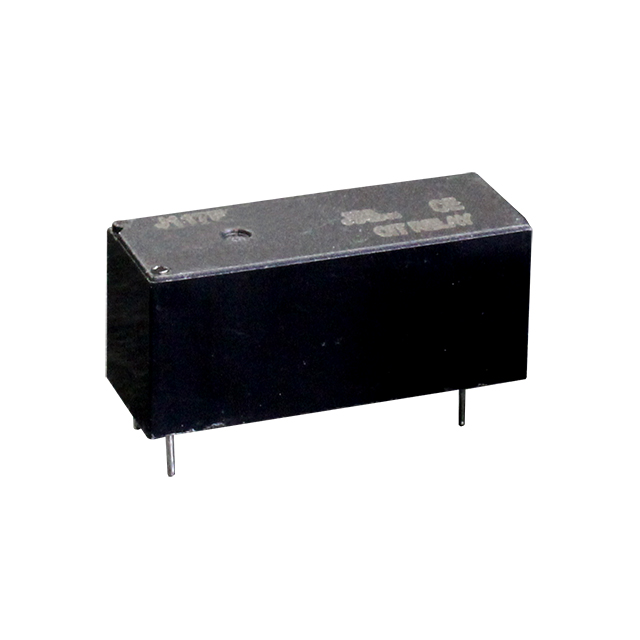

J117F1C Series
Manufacturer: CIT Relay and Switch
Catalog
RELAY GEN PURPOSE SPDT 10A 24V
| Part | Load - Max Switching | Coil Resistance | Switching Voltage [Max] | Contact Rating (Current) | Must Operate Voltage | Seal Rating | Contact Form | Operate Time | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Mounting Type | Relay Type | Coil Current | Release Time | Termination Style | Must Release Voltage | Coil Insulation | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 240 W 1500 W 2000 VA 4000 VA | 2.618 kOhms | 30 VDC 150 VDC 250 VAC 400 VAC | 8 A 10 A | 16.8 VDC | Sealed - Fully | SPDT (1 Form C) | 10 ms | 24 VDC | -55 C | 125 °C | Non Latching | Through Hole | General Purpose | 9.2 mA | 5 ms | PC Pin | 2.4 VDC | Class F | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | 240 W 1500 W 2000 VA 4000 VA | 655 Ohms | 30 VDC 150 VDC 250 VAC 400 VAC | 8 A 10 A | 8.4 VDC | Sealed - Fully | SPDT (1 Form C) | 10 ms | 12 VDC | -55 C | 125 °C | Non Latching | Through Hole | General Purpose | 18.3 mA | 5 ms | PC Pin | 1.2 VDC | Class F | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | 240 W 1500 W 2000 VA 4000 VA | 114 Ohms | 30 VDC 150 VDC 250 VAC 400 VAC | 8 A 10 A | 6.75 VDC | Sealed - Fully | SPDT (1 Form C) | 10 ms | 5 VDC | -55 C | 125 °C | Non Latching | Through Hole | General Purpose | 43.9 mA | 5 ms | PC Pin | 0.9 VDC | Class F | Silver Tin Oxide (AgSnO) |
