AEP510 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
NRFND ROHS COMPLIANT: YES
| Part | Coil Resistance | Load - Max Switching | Relay Type | Coil Voltage | Coil Current | Must Release Voltage | Termination Style | Must Operate Voltage | Mounting Type | Seal Rating | Coil Type | Contact Form | Contact Rating (Current) | Switching Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 923.08 Ohms | 2770 VA | General Purpose | 48 VDC | 26 mA | 3.84 VDC | Quick Connect | 36 VDC | Chassis Mount | Sealed - Hermetically | Non Latching | SPST-NO (1 Form A) | 10 A | 277 VAC 400 VDC | 30 ms | 80 °C | -40 C | 50 ms |

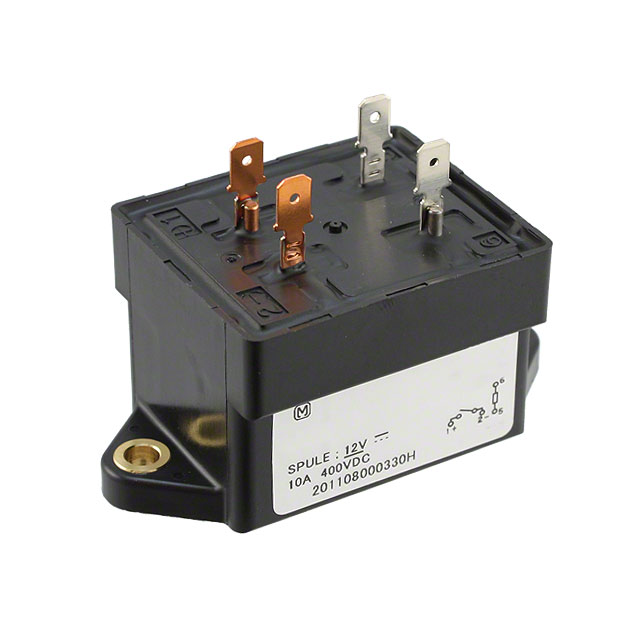

 Panasonic Electronic Components | 116.5 Ohms | 2770 VA | General Purpose | 12 VDC | 103 mA | 0.96 VDC | Quick Connect | 9 VDC | Chassis Mount | Sealed - Hermetically | Non Latching | SPST-NO (1 Form A) | 10 A | 277 VAC 400 VDC | 30 ms | 80 °C | -40 C | 50 ms |
Panasonic Electronic Components | 8.33 kOhms | 27700 VA | General Purpose | 100 VDC | 12 mA | 8 VDC | Quick Connect | 75 VDC | Chassis Mount | Sealed - Hermetically | Non Latching | SPST-NO (1 Form A) | 10 A | 277 VAC 400 VDC | 30 ms | 80 °C | -40 C | 50 ms |

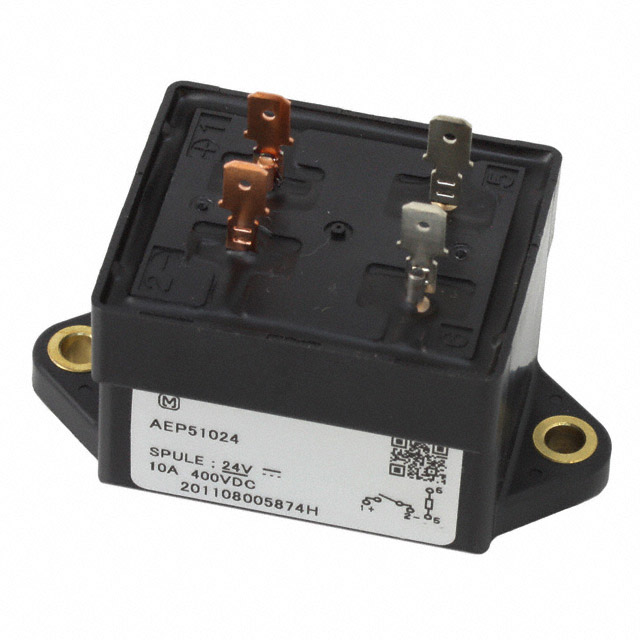

 Panasonic Electronic Components | 461.54 Ohms | 2770 VA | General Purpose | 24 VDC | 52 mA | 1.92 VDC | Quick Connect | 18 VDC | Chassis Mount | Sealed - Hermetically | Non Latching | SPST-NO (1 Form A) | 10 A | 277 VAC 400 VDC | 30 ms | 80 °C | -40 C | 50 ms |
