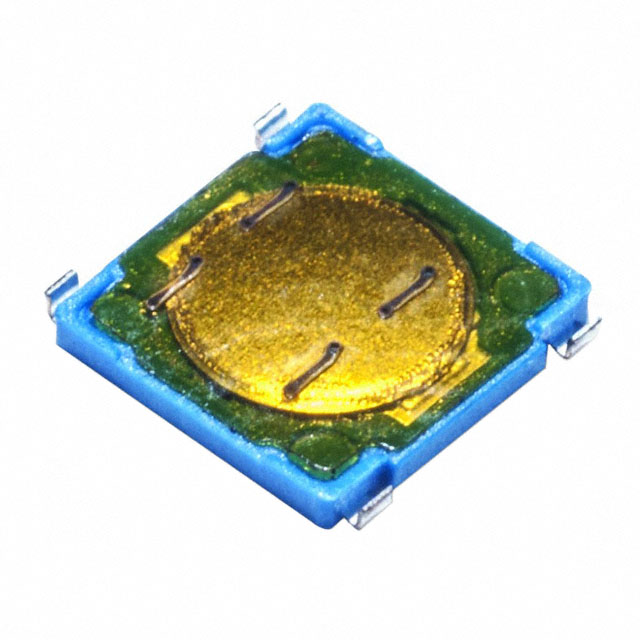

Pts5300 Series Series

Ultra Low Profile SMT Top Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Ultra Low Profile SMT Top Actuated

Part	Switch Function	Contact Rating @ Voltage	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Circuit	Mounting Type	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Type	Termination Style	Actuator Orientation	Illumination	Operating Force
Littelfuse/Commercial Vehicle Products PTS530 GM055 SMTR LFS	Off-Mom	0.05 A 12 VDC	0.2 mm	85 °C	-40 °C	4.5 mm	4.5 mm	SPST-NO	Surface Mount	1000000 Cycles	0.55 mm	Flush	Gull Wing	Top Actuated	Non-Illuminated
Littelfuse/Commercial Vehicle Products PTS530GG065SMTRLFS	Off-Mom	0.05 A 12 VDC	0.2 mm	85 °C	-40 °C	4.5 mm	4.5 mm	SPST-NO	Surface Mount	300000 Cycles	0.65 mm	Flush	Gull Wing	Top Actuated	Non-Illuminated	400 gf
Littelfuse/Commercial Vehicle Products PTS530 JH055 SMTR LFS	Off-Mom	0.05 A 12 VDC	0.2 mm	85 °C	-40 °C	4.5 mm	4.5 mm	SPST-NO	Surface Mount	200000 Cycles	0.55 mm	Flush	J Lead	Top Actuated	Non-Illuminated	200 gf
Littelfuse/Commercial Vehicle Products PTS530 JN055 SMTR LFS	Off-Mom	0.05 A 12 VDC	0.2 mm	85 °C	-40 °C	4.5 mm	4.5 mm	SPST-NO	Surface Mount	1000000 Cycles	0.55 mm	Flush	J Lead	Top Actuated	Non-Illuminated	100 gf
Littelfuse/Commercial Vehicle Products PTS530 JK055 SMTR LFS	Off-Mom	0.05 A 12 VDC	0.2 mm	85 °C	-40 °C	4.5 mm	4.5 mm	SPST-NO	Surface Mount	200000 Cycles	0.55 mm	Flush	J Lead	Top Actuated	Non-Illuminated	260 gf
Littelfuse/Commercial Vehicle Products PTS530 JS065 SMTR LFS	Off-Mom	0.05 A 12 VDC	0.2 mm	85 °C	-40 °C	4.5 mm	4.5 mm	SPST-NO	Surface Mount	150000 Cycles	0.65 mm	Flush	J Lead	Top Actuated	Non-Illuminated	600 gf

Catalog

Ultra Low Profile SMT Top Actuated

Key Features

• 4.5 x 4.5 mm footprint

• High number of cycles

• 0.55 mm thickness

Description

Innovative designers of Bluetooth headsets, MP3 accessories and remote controls turn to C&K’s PTS530 series of ultra low profile SMT top actuated tactile switches because of its small footprint and reputation for lasting a high number of cycles. PTS530 switches have a 4.5 x 4.5mm footprint and a thickness of 0.55mm.
