9949 Series
Manufacturer: Belden Inc.
Beta
⌘K

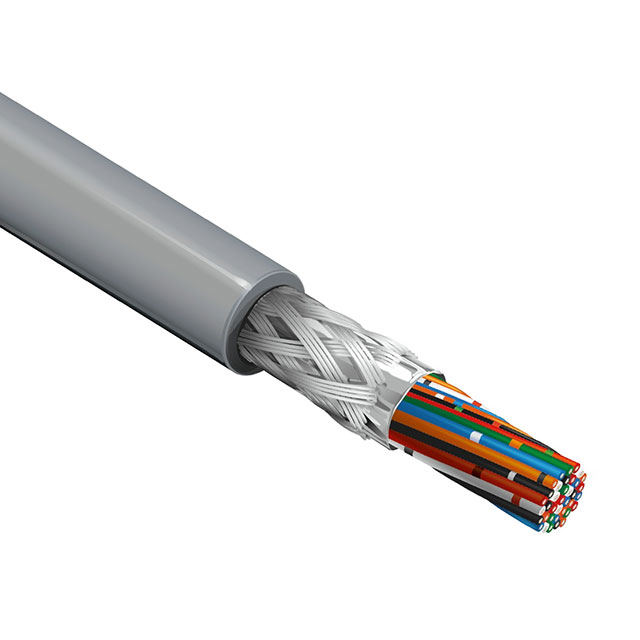

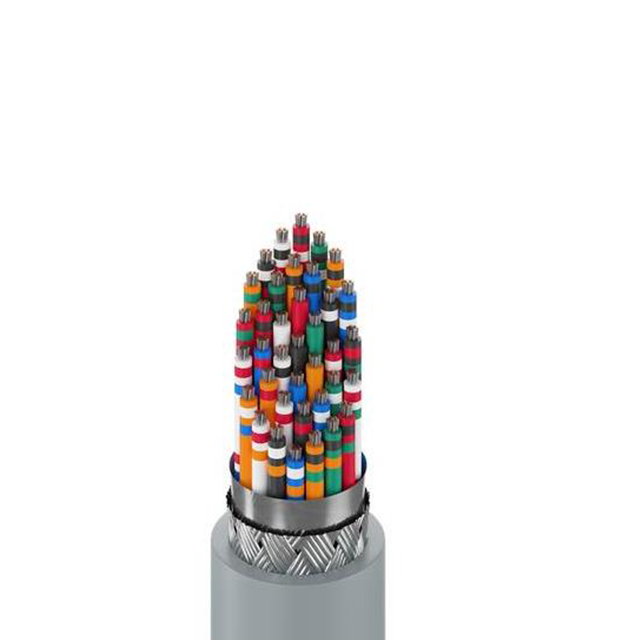

CABLE 37COND 22AWG CHRM SHD 100'
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Usage | Cable Type | Number of Conductors | Shield Type | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation | Jacket Color | Length | Length | Ratings | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 100 ft | 30.5 m | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Computer | Multi-Conductor | 37 | Braid Foil | Copper Tinned | 30 AWG | 7 | 80 °C | -30 ░C | 11.68 mm | 0.46 in | 22 AWG | Poly-Vinyl Chloride (PVC) | Chrome | ||||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Computer | Multi-Conductor | 37 | Braid Foil | Copper Tinned | 30 AWG | 7 | 80 °C | -30 ░C | 11.68 mm | 0.46 in | 22 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 152.4 m | 500 ft | UL Style 2464 | 300 VDC | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Computer | Multi-Conductor | 37 | Braid Foil | Copper Tinned | 30 AWG | 7 | 80 °C | -30 ░C | 11.68 mm | 0.46 in | 22 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 304.8 m | 1000 ft | UL Style 2464 | 300 VDC |
