LMLPD Series

Catalog

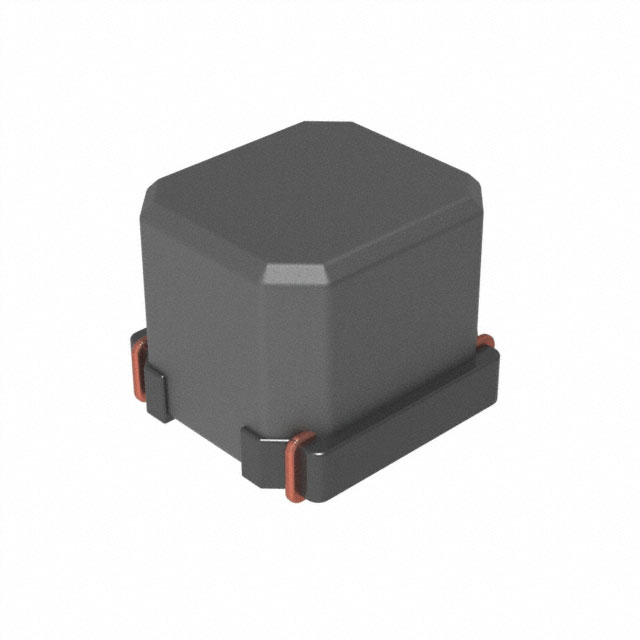

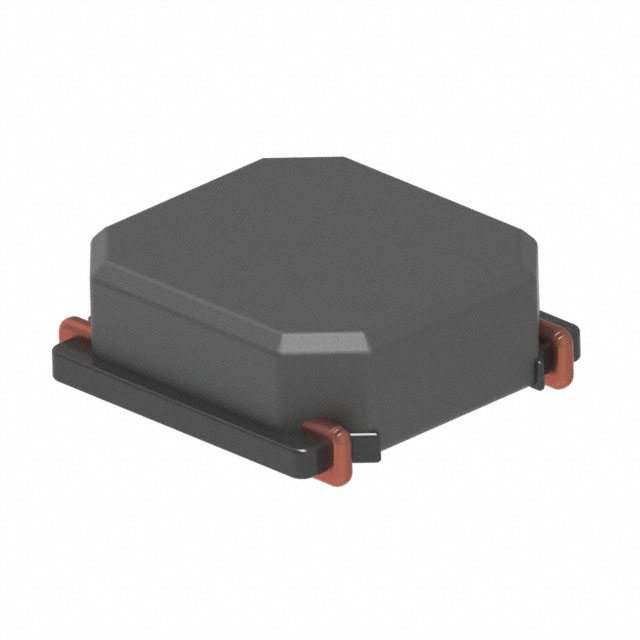

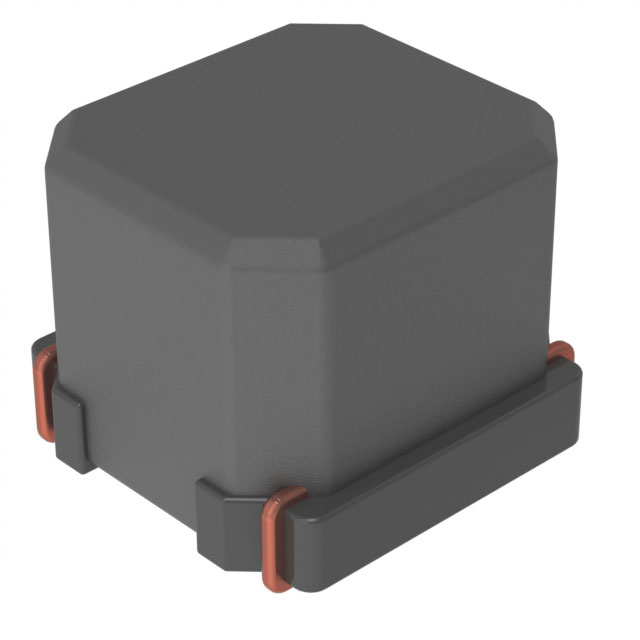

POWER INDUCTORS - SMD 10UH DCR= 16.8MOHM 20% 13B3

Part	Material - Core	Tolerance	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Inductance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Package / Case	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	DC Resistance (DCR)	Height - Seated (Max)	Height - Seated (Max) [Max]
KYOCERA AVX LMLP13B3M100DTAS	Iron Powder	20 %	15.5 A	155 C	-55 C	100 kHz	12.8 mm	0.504 in	0.531 in	13.5 mm	16.8 mOhm	10 µH	Surface Mount	6.5 mm	0.256 in	Shielded	Nonstandard	10 A
KYOCERA AVX LMLP07A7M1R5DTAS	Iron Powder	20 %	16 A	155 C	-55 C	100 kHz		0.26 in	0.287 "	7.3 mm	15 mOhm	1.5 µH	Surface Mount			Shielded	Nonstandard	9 A	0.118 "	3 mm	6.6 mm
KYOCERA AVX LMLP0405MR47DTAS	Iron Powder	20 %	9.5 A	155 C	-55 C	100 kHz	4 mm	0.157 "	0.175 in	4.45 mm		470 nH	Surface Mount	2 mm	0.079 in	Shielded	Nonstandard	7 A				14 mOhm
KYOCERA AVX LMLP1011M150DTAS	Iron Powder	20 %	7 A	155 C	-55 C	100 kHz	10 mm	0.394 in	0.439 in	11.15 mm	45 mOhm	15 µH	Surface Mount			Shielded	Nonstandard	6.25 A					4 mm	0.157 in
KYOCERA AVX LMLP0707M220DTAS	Iron Powder	20 %	2.5 A	155 C	-55 C	100 kHz	6.6 mm	0.26 in	0.276 "	7 mm	280 mOhm	22 µH	Surface Mount	2 mm	0.079 in	Shielded	Nonstandard	1.5 A
KYOCERA AVX LMLP1313MR22DTAS	Iron Powder	20 %	110 A	155 C	-55 C	100 kHz	12.8 mm	0.504 in	0.531 in	13.5 mm	800 µOhm	220 nH	Surface Mount		5 mm	Shielded	Nonstandard	51 A						0.197 in
