K42X-E9S Series
Manufacturer: Kycon, Inc.
Beta
⌘K

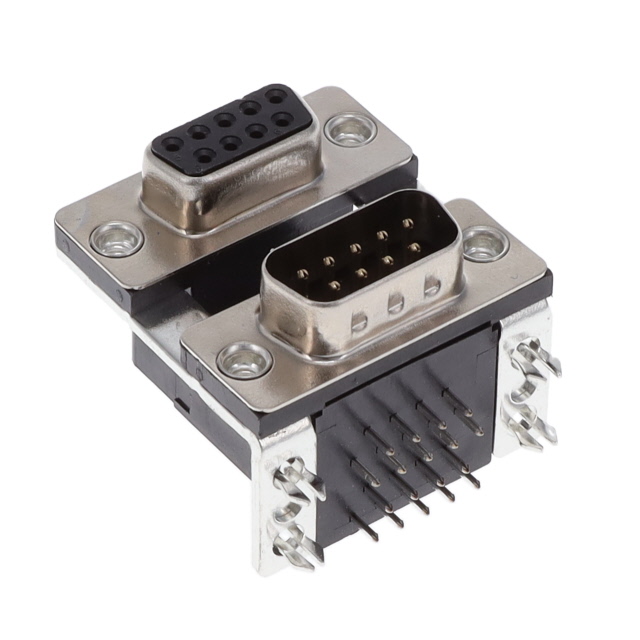

CONN D-SUB PLUG/RCPT 9P R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Dielectric Material | Contact Finish Thickness | Material Flammability Rating | Shell Size, Connector Layout | Current Rating (Amps) | Contact Finish | Backset Spacing | Backset Spacing | Features | Connector Style | Number of Positions | Contact Type | Flange Feature | Flange Feature | Connector Type | Number of Rows [custom] | Mounting Type | Shell Material, Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Black | -55 C | 105 ░C | Brass Phosphor Bronze | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Flash | UL94 V-0 | 1 | 1.2 A | Gold | 8.08 mm | 0.318 " | Board Lock Grounding Indents Mounting Brackets | D-Sub - Stacked | 9 | Signal | Housing/Shell | 4-40 | Plug Male Pins Receptacle Female Sockets | 2 | Right Angle Through Hole | Nickel Plated Steel | Solder |
