102448 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 20P IDC 20-22AWG GOLD

Part	Color	Number of Rows [custom]	Cable Termination	Features	Wire Gauge [Max]	Wire Gauge [Min]	Row Spacing	Row Spacing	Wire Type	Mounting Type	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch	Pitch	Connector Type	Number of Positions [custom]

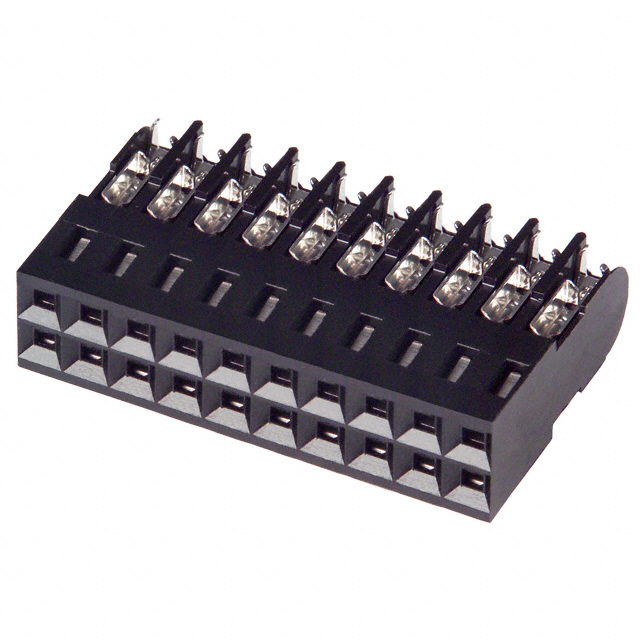

TE Connectivity AMP Connectors 5-102448-8	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	20	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
TE Connectivity AMP Connectors 1-102448-5	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket		30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle	34
TE Connectivity AMP Connectors 1-102448-1	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	26	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
TE Connectivity AMP Connectors 1-102448-8	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	40	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle

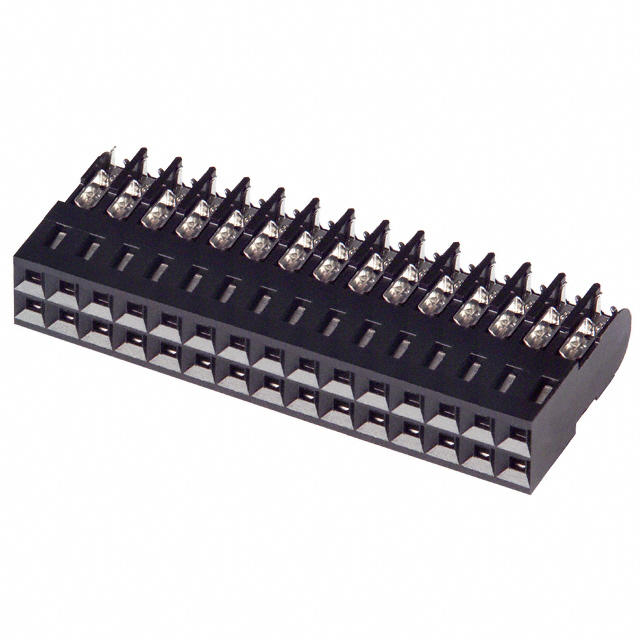

TE Connectivity AMP Connectors 6-102448-3	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	30	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle

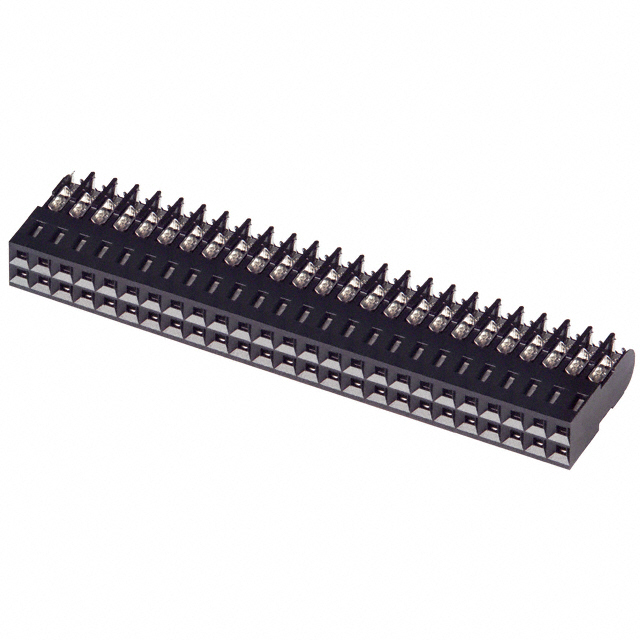

TE Connectivity AMP Connectors 2-102448-3	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	50	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
TE Connectivity AMP Connectors 6-102448-1	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	26	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
TE Connectivity AMP Connectors 5-102448-3	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	10	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
TE Connectivity AMP Connectors 5-102448-7	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	18	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
TE Connectivity AMP Connectors 102448-5	Black	2	IDC	Closed End	22 AWG	19.5 AWG	2.54 mm	0.1 "	Discrete Ribbon Cable	Free Hanging (In-Line)	Female Socket	14	30 Áin	0.76 Ám	Gold	0.1 "	2.54 mm	Receptacle
