L Series

Catalog

SCR MODULES POWER MODULE MODULE SCR/DIODE

Part	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Voltage - Gate Trigger (Vgt) (Max) [Max]	Number of SCRs, Diodes
Sensata-Crydom L614F	2	2	-40 C	125 °C	Module	100 mA	1.2 kV	Through Hole	600 A	Bridge Single Phase - SCRs/Diodes (Layout 1)
Sensata-Crydom L512F	2	2	-40 C	125 °C	Module	100 mA	600 V	Through Hole	300 A	Bridge Single Phase - SCRs/Diodes (Layout 1)
Sensata-Crydom L312F	2	2	-40 C	125 °C	Module	100 mA	600 V	Through Hole	2250 A	Bridge Single Phase - SCRs/Diodes (Layout 1)	2.5 V
Sensata-Crydom L542			-40 C	125 °C	Module	100 mA	600 V	Through Hole	300 A	Bridge Single Phase - All SCRs		4 Diodes

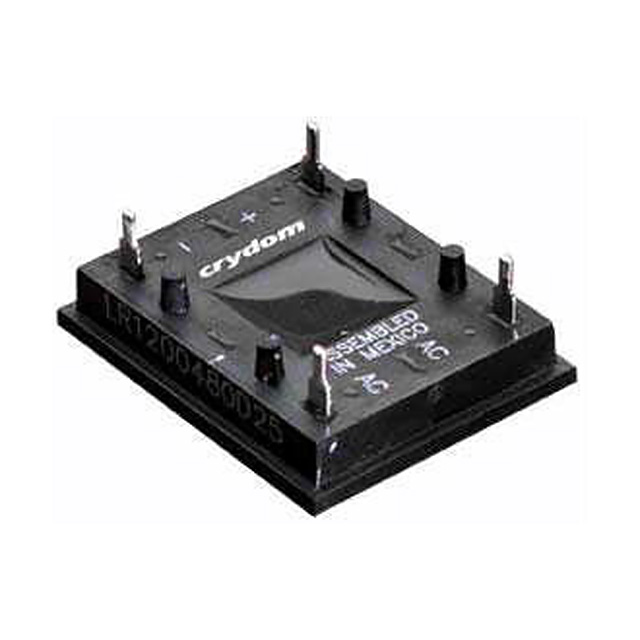

Sensata-Crydom L321F	2	2	-40 C	125 °C	Module	100 mA	400 V	Through Hole	2250 A	Bridge Single Phase - SCRs/Diodes (Layout 2)	2.5 V

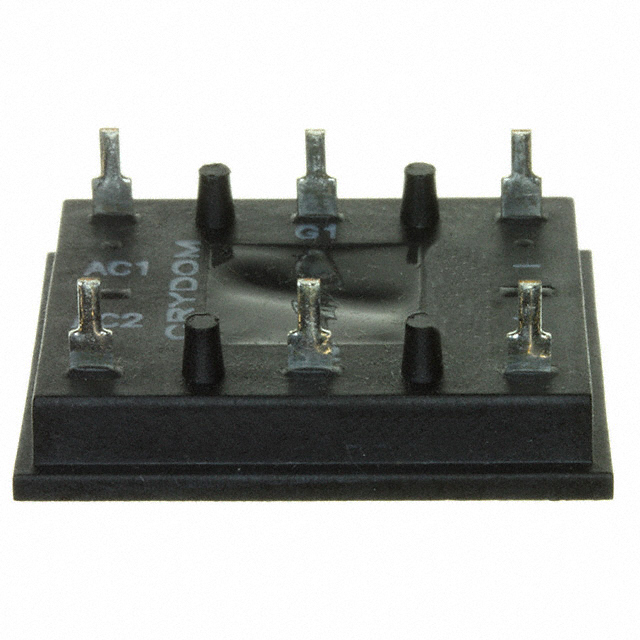

Sensata-Crydom L622F	2	2	-40 C	125 °C	Module	100 mA	600 V	Through Hole	600 A	Bridge Single Phase - SCRs/Diodes (Layout 2)
