FDI18 Series

Catalog

QUICK DISCONNECT TERMINAL, HIGHLAND SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM

Part	Insulation Diameter	Insulation Diameter	Mounting Type	Termination	Contact Material	Tab Thickness	Tab Thickness	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Color	Features	Gender	Terminal Type	Contact Finish	Tab Width [x]	Tab Width [x]
3M Electronic Specialty FDI18-250Q	0.145 in	3.68 mm	Free Hanging (In-Line)	Crimp	Brass	0.81 mm	0.032 in	Fully Insulated	22 AWG	17.5 AWG	0.87 in	22.1 mm	Red	Butted Seam	Female	Standard	Tin	6.35 mm	0.25 in

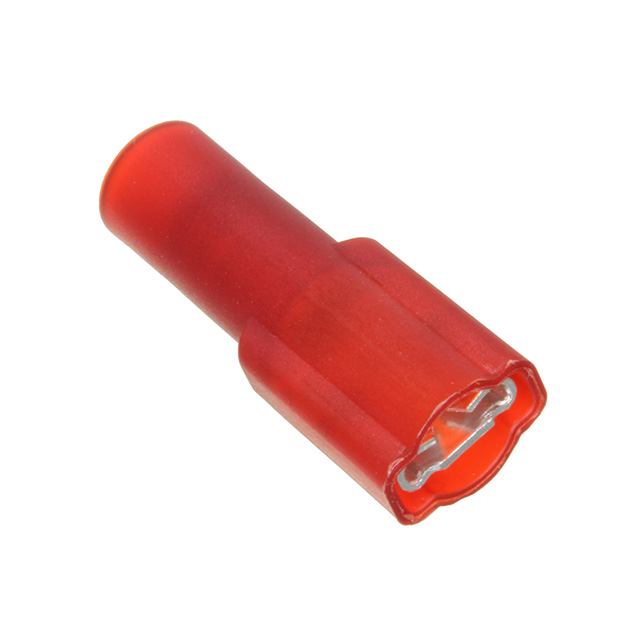

3M Electronic Specialty FDI18-187Q	0.145 in	3.68 mm	Free Hanging (In-Line)	Crimp	Brass	0.51 mm	0.02 in	Fully Insulated	22 AWG	17.5 AWG	0.81 "	20.57 mm	Red	Butted Seam	Female	Standard	Tin	4.75 mm	0.187 in
