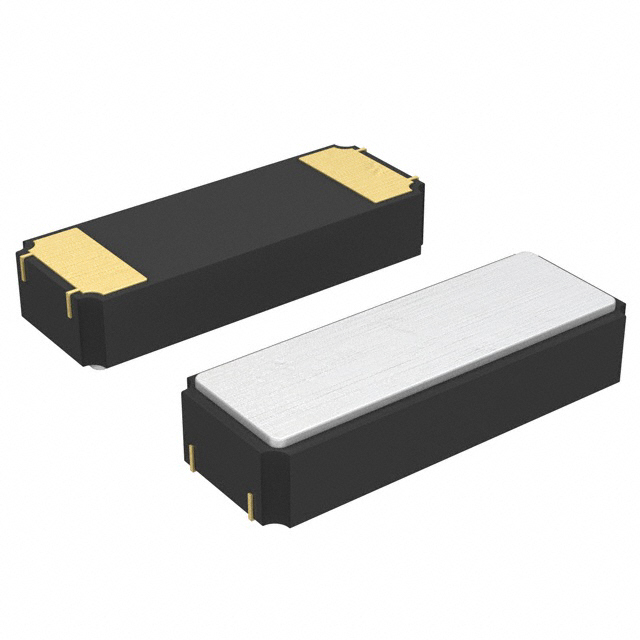

ABS09 Series

Catalog

CRYSTALS 32.768 KHZ 12.5PF -40+85C

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Package / Case	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Mounting Type	Load Capacitance	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Frequency Tolerance	Operating Mode
Abracon LLC ABS09-32.768KHZ-T	4.1 mm	1.5 mm	0.059 in	0.161 "	kHz Crystal (Tuning Fork)	2-SMD No Lead	70 kOhms	85 °C	-40 C	0.035 in	0.9 mm	0.032768 MHz	Surface Mount	12.5 pF	1.5	4.1	2-SMD	20 ppm	Fundamental
