LFCPNX-100 Series

Manufacturer: Lattice Semiconductor Corporation

Catalog

LATTICE CERTUSPRO -NX GENERAL PURPOSE FPGA ON NEXUS PLATFORM (28NM FD-SOI) ROHS COMPLIANT: YES

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of LABs/CLBs	Package / Case	Total RAM Bits	Number of Logic Elements/Cells	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of I/O	Supplier Device Package [x]	Supplier Device Package [y]
Lattice Semiconductor Corporation LFCPNX-100-8BFG484C	1.05 V	0.95 V	24000	484-BBGA	3833856 Bits	96000	Surface Mount	0 °C	85 °C	484-FPBGA (23x23)	309
Lattice Semiconductor Corporation LFCPNX-100-8BFG484I	1.05 V	0.95 V	24000	484-BBGA	3833856 Bits	96000	Surface Mount	-40 °C	100 °C	484-FPBGA (23x23)	309
Lattice Semiconductor Corporation LFCPNX-100-8CBG256I	1.05 V	0.95 V	24000	256-LFBGA	3833856 Bits	96000	Surface Mount	-40 °C	100 °C	256-CABGA (14x14)	169
Lattice Semiconductor Corporation LFCPNX-100-7BFG484I	1.05 V	0.95 V	24000	484-BBGA	3833856 Bits	96000	Surface Mount	-40 °C	100 °C	484-FPBGA (23x23)	309
Lattice Semiconductor Corporation LFCPNX-100-9BBG484I	1.05 V	0.95 V	24000	484-LFBGA	3833856 Bits	96000	Surface Mount	-40 °C	100 °C	484-CABGA	313	19	19
Lattice Semiconductor Corporation LFCPNX-100-9ASG256I	1.05 V	0.95 V	24000	256-LBGA 256-VFBGA WLBGA	3833856 Bits	96000	Surface Mount	-40 °C	100 °C	256-SBGA (27x27) 256-WLP (9x9)	169

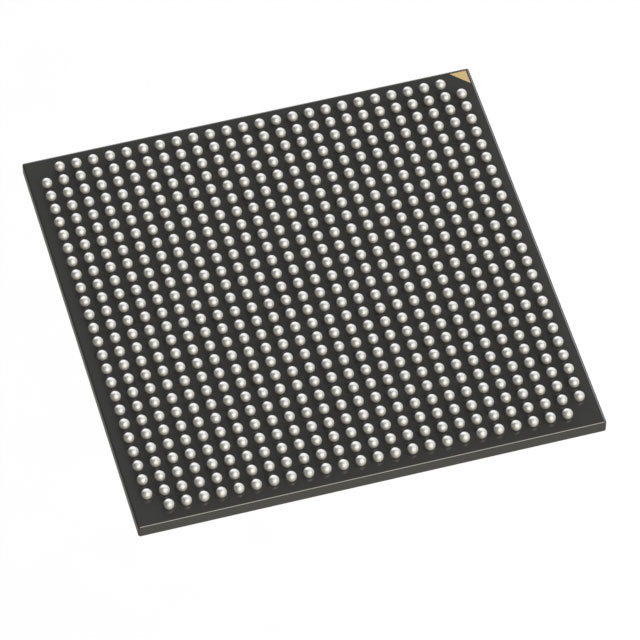

Lattice Semiconductor Corporation LFCPNX-100-8LFG672C	1.05 V	0.95 V	24000	672-BBGA	3833856 Bits	96000	Surface Mount	0 °C	85 °C	672-FCBGA (27x27)	313
Lattice Semiconductor Corporation LFCPNX-100-9BFG484C	1.05 V	0.95 V	24000	484-BBGA	3833856 Bits	96000	Surface Mount	0 °C	85 °C	484-FPBGA (23x23)	309
Lattice Semiconductor Corporation LFCPNX-100-7CBG256C	1.05 V	0.95 V	24000	256-LFBGA	3833856 Bits	96000	Surface Mount	0 °C	85 °C	256-CABGA (14x14)	169
Lattice Semiconductor Corporation LFCPNX-100-9LFG672I	1.05 V	0.95 V	24000	672-BBGA	3833856 Bits	96000	Surface Mount	-40 °C	100 °C	672-FCBGA (27x27)	313
