T9GV5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 110V
| Part | Coil Resistance | Coil Voltage | Switching Voltage [Max] | Coil Type | Seal Rating | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Contact Form | Termination Style | Release Time | Coil Insulation | Contact Rating (Current) | Load - Max Switching [Max] | Must Operate Voltage | Contact Material | Relay Type | Coil Current | Must Release Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.4 kOhms | 110 VDC | 480 VAC | Non Latching | Sealed - Flux Protection | 15 ms | -40 C | 105 ░C | CQC cURus VDE | SPDT (1 Form C) | PC Pin | 22 ms | Class B | 20 A | 9600 VA | 82.5 VDC | Silver Tin Oxide (AgSnO) | General Purpose | 8.2 mA | 11 VDC | Through Hole |
 TE Connectivity AMP Connectors | 13.4 kOhms | 110 VDC | 480 VAC | Non Latching | Sealed - Flux Protection | 15 ms | -40 C | 105 ░C | CQC cURus VDE | SPDT (1 Form C) | PC Pin Quick Connect - 0.250" (6.3mm) | 22 ms | Class B | 20 A | 9600 VA | 82.5 VDC | Silver Tin Oxide (AgSnO) | General Purpose | 8.2 mA | 11 VDC | Through Hole |

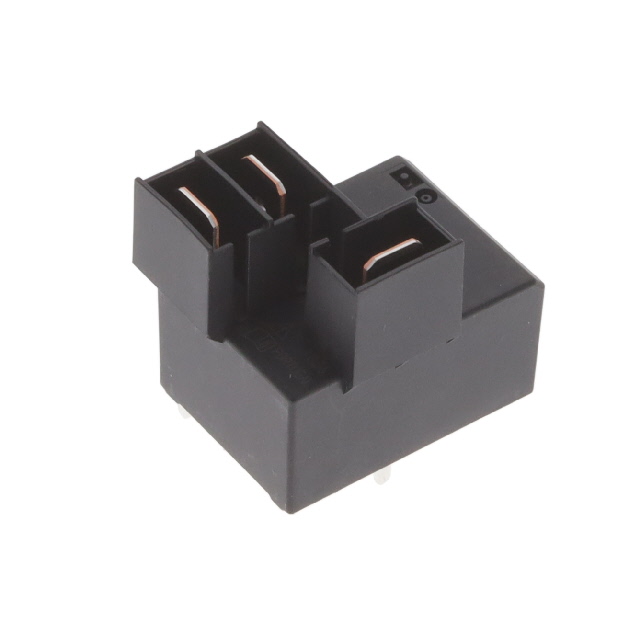

 TE Connectivity AMP Connectors | 249 Ohms | 15 VDC | 480 VAC | Non Latching | Sealed - Flux Protection | 15 ms | -40 C | 105 ░C | CQC cURus VDE | SPDT (1 Form C) | PC Pin Quick Connect - 0.250" (6.3mm) | 22 ms | Class B | 20 A | 9600 VA | 11.25 VDC | Silver Tin Oxide (AgSnO) | General Purpose | 0.06 A | 1.5 VDC | Through Hole |

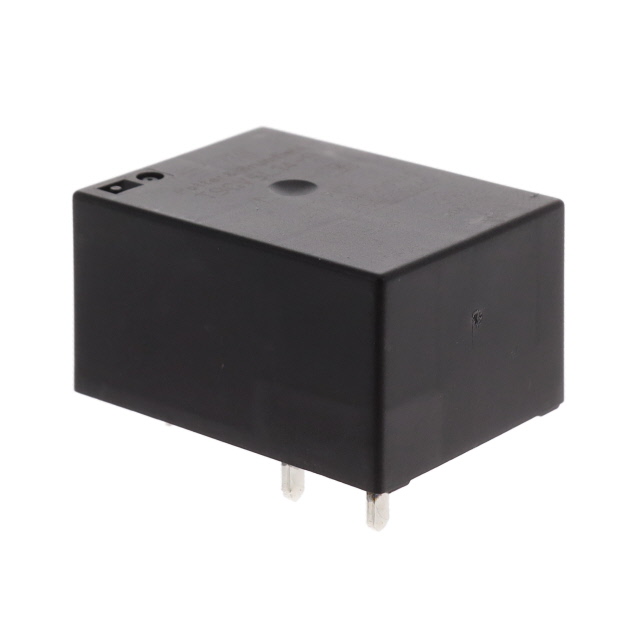

 TE Connectivity AMP Connectors | 90 Ohms | 9 VDC | 480 VAC | Non Latching | Sealed - Flux Protection | 15 ms | -40 C | 105 ░C | CQC cURus VDE | SPDT (1 Form C) | PC Pin | 22 ms | Class B | 20 A | 9600 VA | 6.75 VDC | Silver Tin Oxide (AgSnO) | General Purpose | 0.1 A | 0.9 VDC | Through Hole |

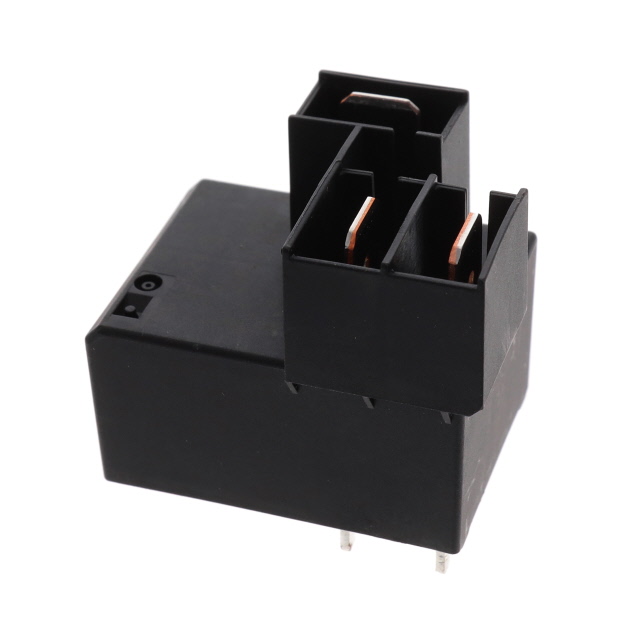

 TE Connectivity AMP Connectors | 90 Ohms | 9 VDC | 480 VAC | Non Latching | Sealed - Flux Protection | 15 ms | -40 C | 105 ░C | CQC cURus VDE | SPDT (1 Form C) | PC Pin Quick Connect - 0.250" (6.3mm) | 22 ms | Class B | 20 A | 9600 VA | 6.75 VDC | Silver Tin Oxide (AgSnO) | General Purpose | 0.1 A | 0.9 VDC | Through Hole |

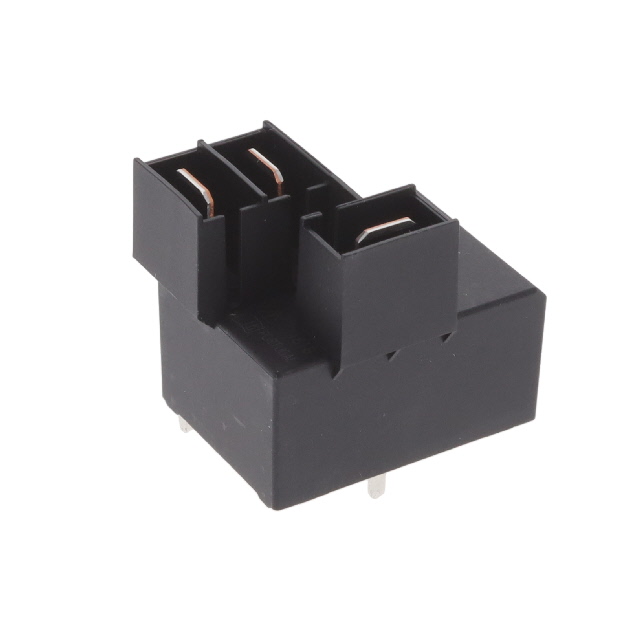

 TE Connectivity AMP Connectors | 28 Ohms | 5 VDC | 480 VAC | Non Latching | Sealed - Flux Protection | 15 ms | -40 C | 105 ░C | CQC cURus VDE | SPDT (1 Form C) | PC Pin Quick Connect - 0.250" (6.3mm) | 22 ms | Class B | 20 A | 9600 VA | 3.75 VDC | Silver Tin Oxide (AgSnO) | General Purpose | 180 mA | 0.5 VDC | Through Hole |
