10033526 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
MINI USB B TYPE RECEPT
| Part | Material Flammability Rating | Contact Finish | Shell/Shielding Material | Insulation Color | Shielding | Number of Contacts | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Current Rating (Amps) | Mating Cycles | Mounting Feature | Voltage - Rated | Gender | Features | Number of Ports | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

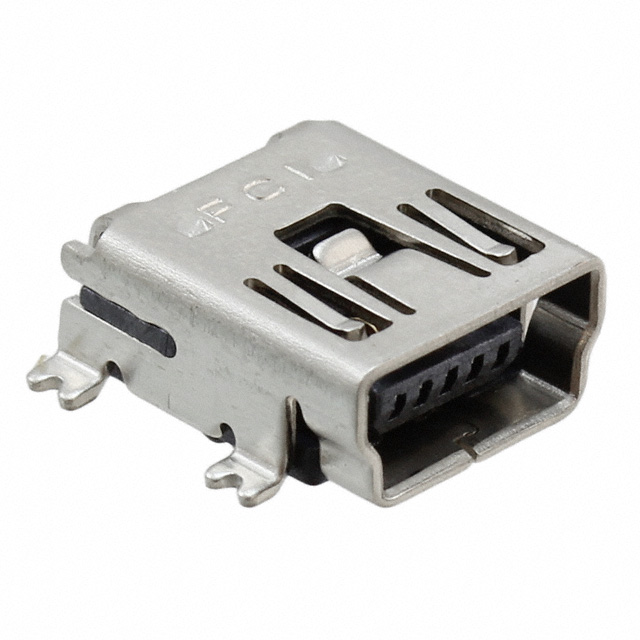

 Amphenol ICC (FCI) | UL94 V-0 | Gold | Copper Alloy | Black | Shielded | 5 | Solder | 85 °C | -25 °C | USB - mini B | 1 A | 5000 | Horizontal | 30 V | Receptacle | Solder Retention | 1 | Right Angle Surface Mount |

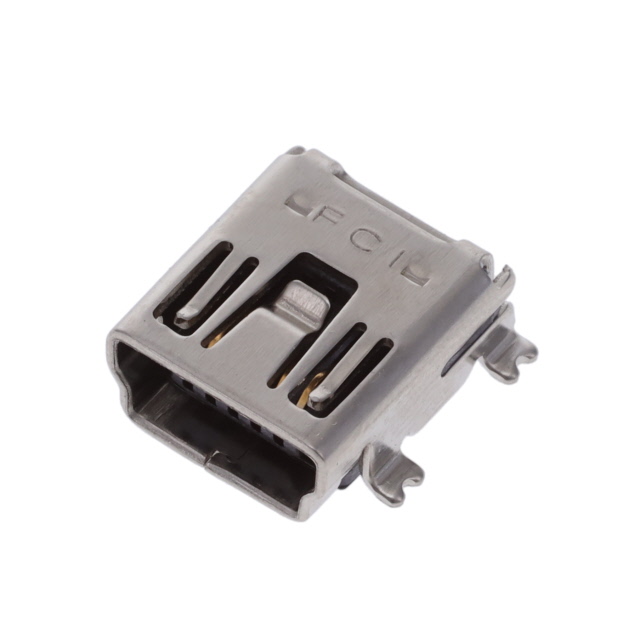

 Amphenol ICC (FCI) | UL94 V-0 | Gold | Copper Alloy | Black | Shielded | 5 | Solder | 85 °C | -25 °C | USB - mini B | 1 A | 5000 | Horizontal | 30 V | Receptacle | Board Guide Solder Retention | 1 | Right Angle Surface Mount |
