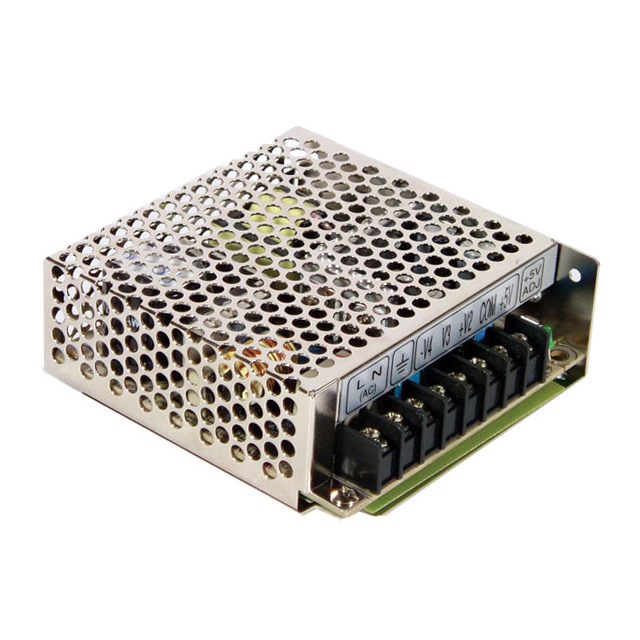

RQ-50 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CNVRTR 5V 12V -5V -12V 46W
| Part | Minimum Load Required | Voltage - Isolation | Mounting Type | Voltage - Output 3 | Current - Output 1 | Voltage - Output 4 | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Power (Watts) | Number of Outputs | Features | Voltage - Output 2 | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 3 | Current - Output 2 | Type | Efficiency | Current - Output 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3000 V | Chassis Mount | -5 V | 5 A | -12 V | 88 VAC 125 VDC | 264 VAC 373 VDC | ITE (Commercial) | 46 W | 4 | Adjustable Output Universal Input | 12 V | CB CE cURus TUV | 97 mm | 3.9 " | 99 mm | 3.82 in | 1.42 " | 36 mm | 5 V | 70 °C | -25 °C | 500 mA | 1 A | Enclosed | 74 % | 500 mA | |
MEAN WELL USA Inc. | 3000 V | Chassis Mount | 24 V | 3 A | -12 V | 88 VAC 125 VDC | 264 VAC 373 VDC | ITE (Commercial) | 63 W | 4 | Adjustable Output Universal Input | 12 V | CB CE cURus TUV | 97 mm | 3.9 " | 99 mm | 3.82 in | 1.42 " | 36 mm | 5 V | 70 °C | -25 °C | 900 mA | 900 mA | Enclosed | 79 % | 500 mA | |
 MEAN WELL USA Inc. | 3000 V | Chassis Mount | -5 V | 5 A | -15 V | 88 VAC 125 VDC | 264 VAC 373 VDC | ITE (Commercial) | 50 W | 4 | Adjustable Output Universal Input | 15 V | CB CE cURus TUV | 97 mm | 3.9 " | 99 mm | 3.82 in | 1.42 " | 36 mm | 5 V | 70 °C | -25 °C | 500 mA | 1 A | Enclosed | 75 % | 500 mA |
