EN3C16 Series

Catalog

EN3 HARSH ENVIRONMENT CABLE MOUNT, 16 CONTACTS, MALE, STAGGERED

Part	Contact Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Contact Finish - Mating	Number of Positions	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Insert Material	Applications	Features	Material Flammability Rating	Voltage Rating	Color	Connector Type	Shielding	Fastening Type	Mounting Type	Current Rating (Amps)	Backshell Material, Plating	Primary Material

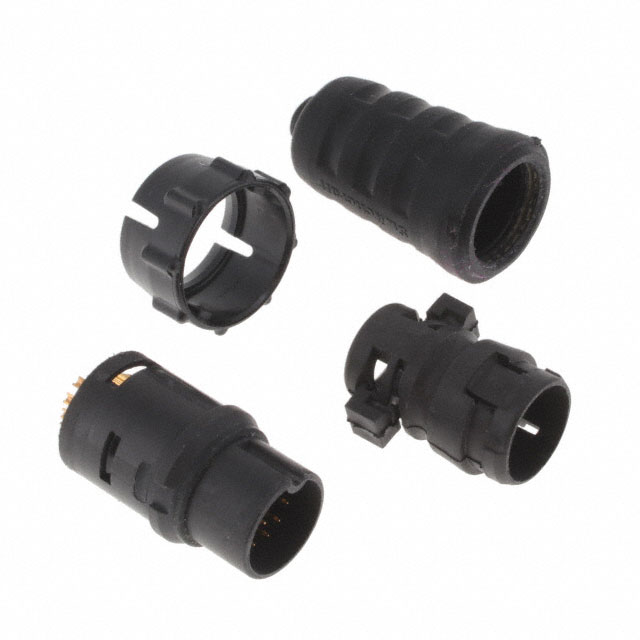

SWITCHCRAFT/CONXALL EN3C16M26SX	Copper Alloy	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold	16	Keyed	-40 C	65 °C	IP66 IP68	Elastomer	General Purpose Instrumentation Marine Medical	Backshell Cable Clamp Coupling Nut	UL94 V-0	250 VAC	Black	Plug Male Pins	Unshielded	Bayonet Lock	Free Hanging (In-Line)	3 A	Thermoplastic	Plastic
SWITCHCRAFT/CONXALL EN3C16F26SX	Copper Alloy	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold	16	Keyed	-40 C	65 °C	IP66 IP68	Elastomer	General Purpose Instrumentation Marine Medical	Backshell Cable Clamp Coupling Nut	UL94 V-0	250 VAC	Black	Plug Female Sockets	Unshielded	Bayonet Lock	Free Hanging (In-Line)	3 A	Thermoplastic	Plastic
SWITCHCRAFT/CONXALL EN3C16F26X	Copper Alloy	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold	16	Keyed	-40 C	65 °C	IP66 IP68	Elastomer	General Purpose Instrumentation Marine Medical	Backshell Cable Clamp Coupling Nut	UL94 V-0	250 VAC	Black	Plug Female Sockets	Unshielded	Bayonet Lock	Free Hanging (In-Line)	3 A	Thermoplastic	Plastic
SWITCHCRAFT/CONXALL EN3C16M26X	Copper Alloy	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold	16	Keyed	-40 C	65 °C	IP66 IP68	Elastomer	General Purpose Instrumentation Marine Medical	Backshell Cable Clamp Coupling Nut	UL94 V-0	250 VAC	Black	Plug Male Pins	Unshielded	Bayonet Lock	Free Hanging (In-Line)	3 A	Thermoplastic	Plastic
