SSQE48 Series

Catalog

DC DC CONVERTER 5V 65W

Part	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Control Features	Voltage - Input (Min) [Min]	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Features	Mounting Type	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]

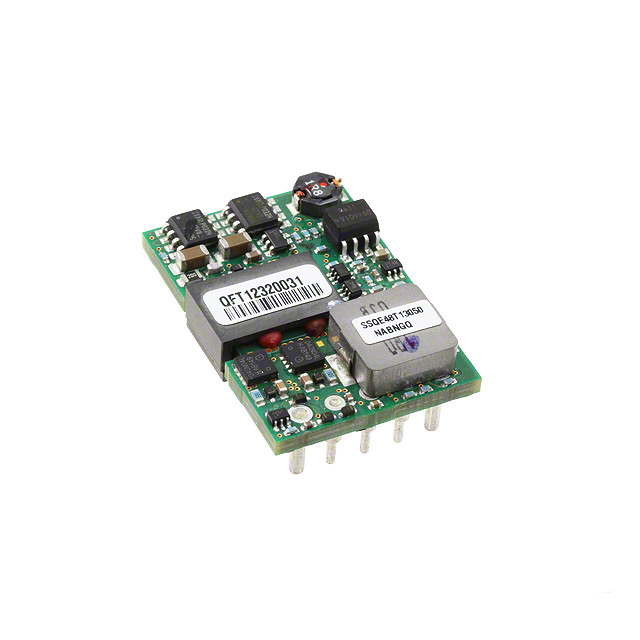

Bel Fuse Inc. SSQE48T13050-NABNG	65 W	5 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	90 %	85 °C	-40 C	8-DIP Module 1/16 Brick	13 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T13050-NAB0G	65 W	5 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	90 %	85 °C	-40 C	8-DIP Module 1/16 Brick	13 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T25012-NAANG	30 Watts	1.2 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	83 %	85 °C	-40 C	8-DIP Module 1/16 Brick	25 A	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T15033-NABNG	50 W	3.3 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	90 %	85 °C	-40 C	8-DIP Module 1/16 Brick	15 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T07120-NACNG	84 W	12 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	92 %	85 °C	-40 C	8-DIP Module 1/16 Brick	7 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V

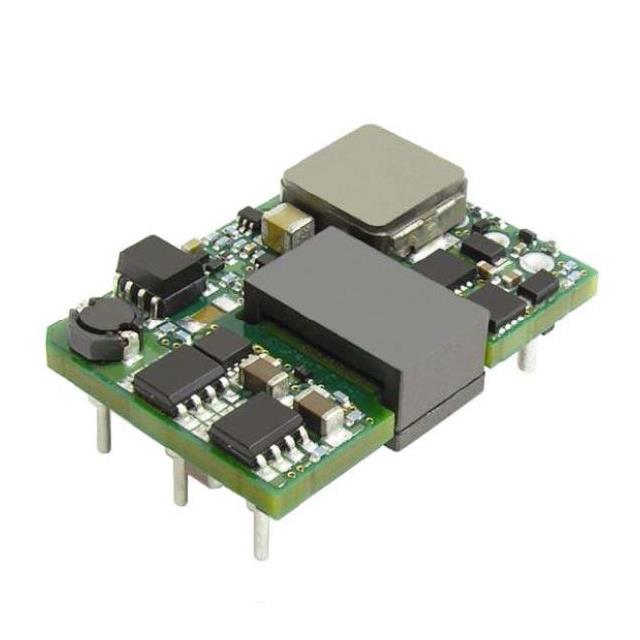

Bel Fuse Inc. SSQE48T07120-NABFG	84 W	12 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	92 %	85 °C	-40 C	8-DIP Module 1/16 Brick	7 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T13050-NACNG	65 W	5 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	90 %	85 °C	-40 C	8-DIP Module 1/16 Brick	13 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T25025-NACNG	63 W	2.5 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	88 %	85 °C	-40 C	8-DIP Module 1/16 Brick	25 A	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T15033-NAC0G	50 W	3.3 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	90 %	85 °C	-40 C	8-DIP Module 1/16 Brick	15 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
Bel Fuse Inc. SSQE48T10033-NAC0G	33 W	3.3 V	2250 VDC	1	Active Low Enable	36 V	Isolated Module	90 %	85 °C	-40 C	8-DIP Module 1/16 Brick	10 A	OCP OTP OVP Remote On/Off UVLO	Through Hole	ITE (Commercial)	33 mm	9.5 mm	1.3 in	0.37 in	22.86 mm	22.8 mm	75 V
