HEX40 Series

Catalog

CONN BACKSHELL ADPT SZ11 B SILV

Part	Material	Color	Cable Exit	Shielding	For Use With/Related Products	Type	Features	Plating	Shell Size - Insert	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Includes	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert [custom]	Shell Size - Insert [custom]
TE Connectivity Aerospace, Defense and Marine HEX40-AC-90-11-A2-C	Aluminum Alloy	Silver	90 °	Shielded	MIL-C-38999 Series III IV	Backshell Conduit Adapter	Clamping Nut	Electroless Nickel	B	11	0.85 in	21.59 mm	1 Backshell 1 Clamping Nut 1 Conic Ring 1 Star	M15x1	0.87 in	22.1 mm

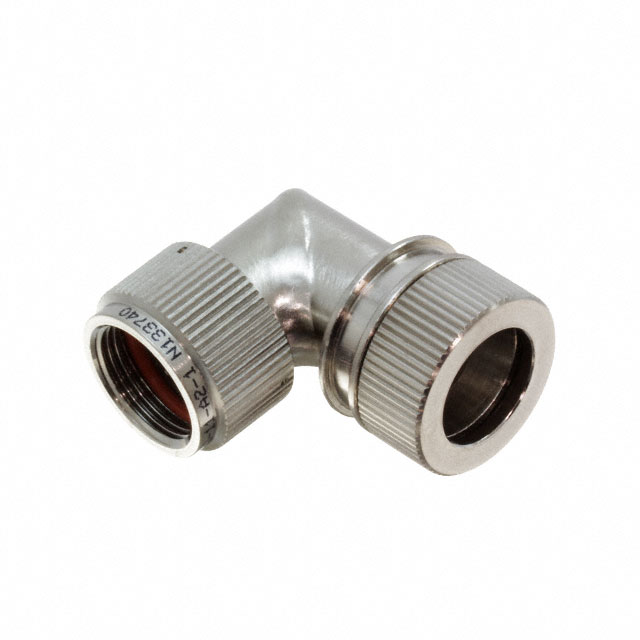

TE Connectivity Aerospace, Defense and Marine HEX40-AC-90-11-A2-1	Aluminum Alloy	Silver	90 °	Shielded	MIL-C-38999 Series III IV	Backshell Heat Shrink Adapter	Clamping Nut	Electroless Nickel	B	11	0.85 in	21.59 mm	1 Backshell 1 Clamping Nut 1 Conic Ring 1 Star	M15x1	0.87 in	22.1 mm
TE Connectivity Aerospace, Defense and Marine HEX40-AC-00-09-A1-1	Aluminum Alloy	Silver	180 °	Shielded	MIL-C-38999 Series III IV	Backshell Heat Shrink Adapter	Clamping Nut	Electroless Nickel			0.69 in	17.53 mm	1 Backshell 1 Clamping Nut 1 Conic Ring	M12x1	19 mm		0.748 in	9	A
