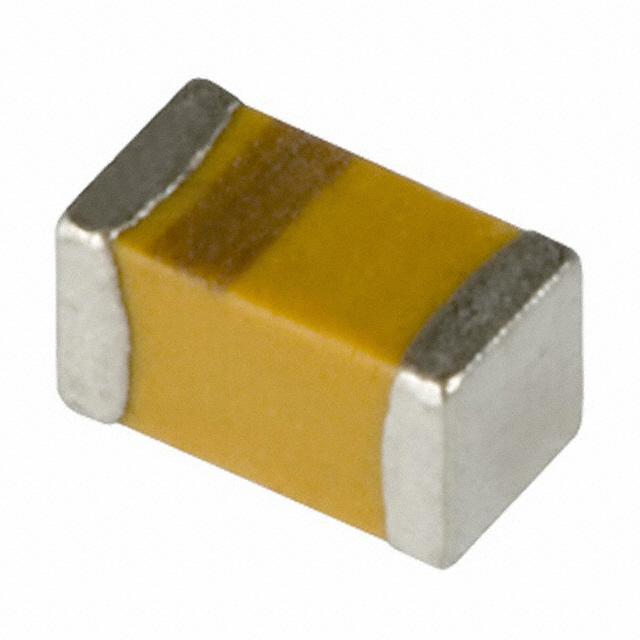

TPC Series
Manufacturer: KYOCERA AVX
Beta
⌘K
TANTALUM CAPACITORS - SOLID SMD 6.3VDC 22UF 0805 +/- 10% ESR=1500MOHMS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | ESR (Equivalent Series Resistance) | Manufacturer Size Code | Package / Case | Capacitance | Voltage - Rated | Features | Package / Case | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | -55 C | 125 °C | 2000 Hrs | 2 mm | 0.053 " | 0.079 in | 1.35 mm | 10 % | Molded | 0.059 " | 1.5 mm | Surface Mount | 1.5 Ohm | R | 0805 | 22 µF | 6.3 VDC | General Purpose | ||
 KYOCERA AVX | -55 C | 125 °C | 2000 Hrs | 1.6 mm | 0.033 " | 0.063 " | 0.85 mm | 20 % | Molded | 0.039 in | Surface Mount | 5 Ohm | L | 0603 | 1 µF | 10 V | General Purpose | 1608 Metric | 1 mm | |
 KYOCERA AVX | -55 C | 125 °C | 2000 Hrs | 2 mm | 0.053 " | 0.079 in | 1.35 mm | 10 % | Molded | 0.059 " | 1.5 mm | Surface Mount | 1.5 Ohm | R | 0805 | 47 µF | 3 VDC | General Purpose | ||
KYOCERA AVX | -55 C | 125 °C | 2000 Hrs | 2 mm | 0.053 " | 0.079 in | 1.35 mm | 20 % | Molded | 0.059 " | 1.5 mm | Surface Mount | 1.8 Ohm | R | 0805 | 10 µF | 16 V | General Purpose | ||
 KYOCERA AVX | -55 C | 125 °C | 2000 Hrs | 1.6 mm | 0.033 " | 0.063 " | 0.85 mm | 20 % | Molded | 0.039 in | Surface Mount | 5 Ohm | L | 0603 | 3.3 µF | 10 V | General Purpose | 1608 Metric | 1 mm |
