S89R11 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY IMPULSE DPDT 15A 12V

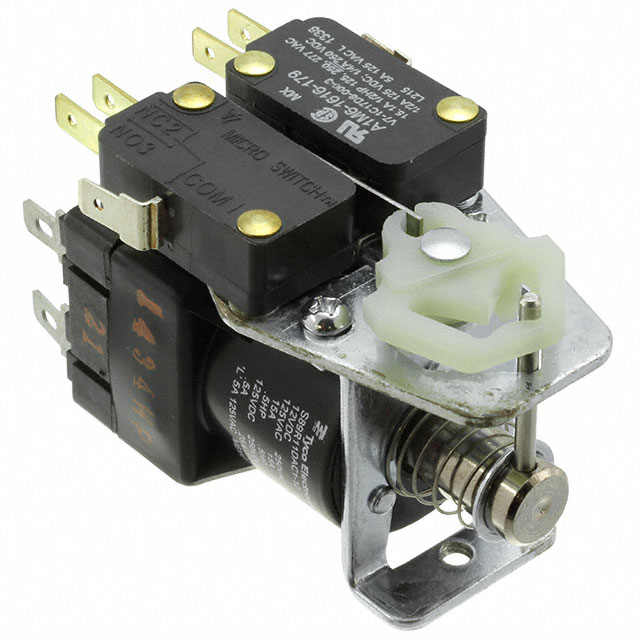

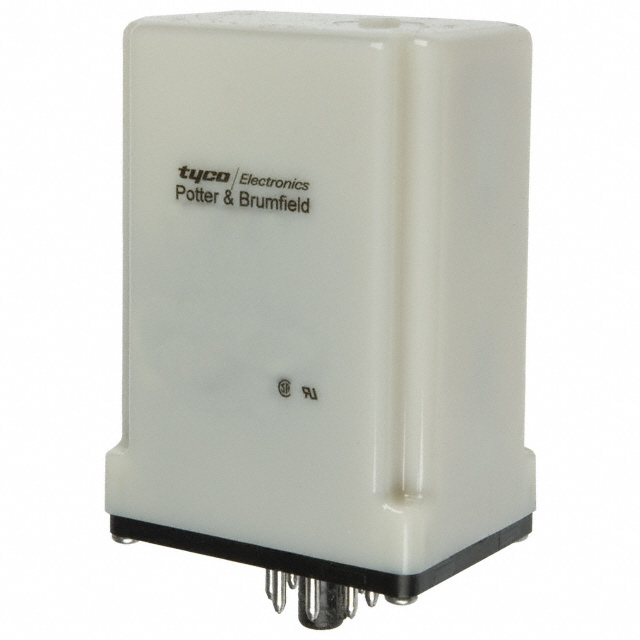

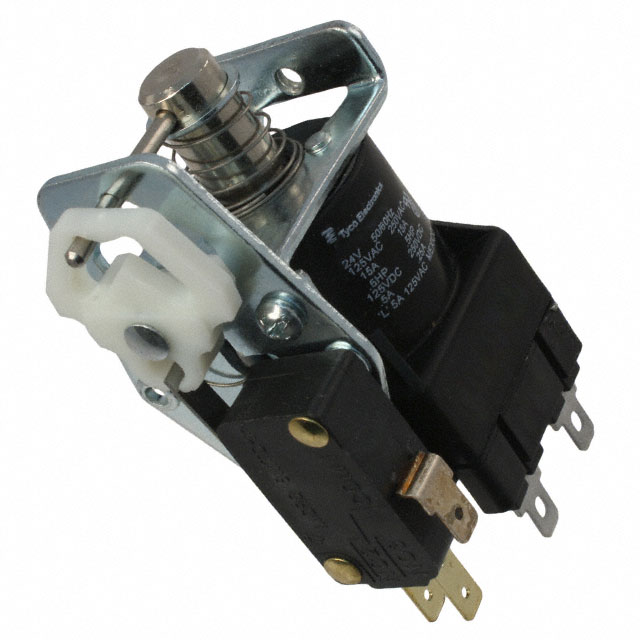

| Part | Coil Resistance | Coil Current | Termination Style | Coil Insulation | Contact Form | Approval Agency | Must Operate Voltage | Coil Voltage | Switching Voltage [Max] | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Coil Type | Contact Rating (Current) | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 22.5 Ohms | 533 mA | Quick Connect | Class B | DPDT (2 Form C) | CSA UR | 9 VDC | 12 VDC | 277 VAC | Impulse | -10 °C | 60 °C | Chassis Mount | Latching Single Coil | 15 A | 4155 VA |
 TE Connectivity AMP Connectors | 22.5 Ohms | 533 mA | Quick Connect - 0.250" (6.3mm) | Class B | DPDT (2 Form C) | CSA UR | 9 VDC | 12 VDC | 277 VAC | Impulse | -10 °C | 60 °C | Chassis Mount | Latching Single Coil | 15 A | 4155 VA |
TE Connectivity AMP Connectors | 260 Ohms | 0.075 A | Quick Connect - 0.250" (6.3mm) | Class B | DPDT (2 Form C) | CSA UR | 102 VAC | 120 VAC | 277 VAC | Impulse | -10 °C | 60 °C | Chassis Mount | Latching Single Coil | 15 A | 4155 VA |
 TE Connectivity AMP Connectors | 22.5 Ohms | 533 mA | Plug In | Class B | DPDT (2 Form C) | CSA UR | 9 VDC | 12 VDC | 277 VAC | Impulse | -10 °C | 60 °C | Socketable | Latching Single Coil | 15 A | 4155 VA |
 TE Connectivity AMP Connectors | 5.8 Ohms | 1 A | Quick Connect | Class B | DPDT (2 Form C) | CSA UR | 4.5 VDC | 277 VAC | Impulse | -10 °C | 60 °C | Chassis Mount | Latching Single Coil | 15 A | 4155 VA | |
TE Connectivity AMP Connectors | 8.7 Ohms | 375 mA | Plug In | Class B | DPDT (2 Form C) | CSA UR | 24 VAC | 277 VAC | Impulse | -10 °C | 60 °C | Socketable | Latching Single Coil | 15 A | 4155 VA | |
TE Connectivity AMP Connectors | 92 Ohms | 260.9 mA | Plug In | Class B | SPDT (1 Form C) | CSA UR | 18 VDC | 24 VDC | 277 VAC | Impulse | -10 °C | 60 °C | Socketable | Latching Single Coil | 15 A | 4155 VA |
TE Connectivity AMP Connectors | 1.08 kOhms | 38 mA | Quick Connect | Class B | DPDT (2 Form C) | CSA UR | 204 VAC | 240 VAC/DC | 277 VAC | Impulse | -10 °C | 60 °C | Chassis Mount | Latching Single Coil | 15 A | 4155 VA |
TE Connectivity AMP Connectors | 92 Ohms | 260 mA | Quick Connect | Class B | DPDT (2 Form C) | CSA UR | 18 VDC | 24 VDC | 277 VAC | Impulse | -10 °C | 60 °C | Chassis Mount | Latching Single Coil | 15 A | 4155 VA |
