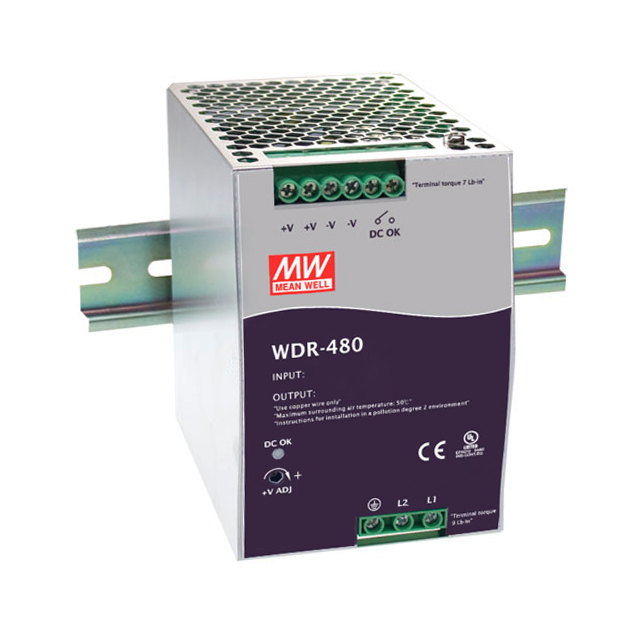

WDR-480 Series

Catalog

AC/DC DIN RAIL SUPPLY 48V 480W

Part	Minimum Load Required	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	DC Voltage - Input (Max) [Max]	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Features
MEAN WELL USA Inc. WDR-480-48		1	10 A	5.06 "	125.2 mm	3.37 in	128.5 mm	4.93 in	85.5 mm	93 %	780 V	CB CE UL	180 VAC	550 VAC	Industrial ITE (Commercial)	AC or DC	-30 °C	70 °C	480 W	48 V	254 V	3000 V	Adjustable Output PFC
