LT3086 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

40V, 2.1A LOW DROPOUT ADJUSTABLE LINEAR REGULATOR WITH MONITORING AND CABLE DROP COMPENSATION

Part	Control Features	Voltage - Output (Max) [Max]	Output Type	PSRR	Mounting Type	Current - Output	Current - Quiescent (Iq)	Number of Regulators	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage Dropout (Max) [Max]	Protection Features	Supplier Device Package	Voltage - Output (Min/Fixed) [Min]	Output Configuration

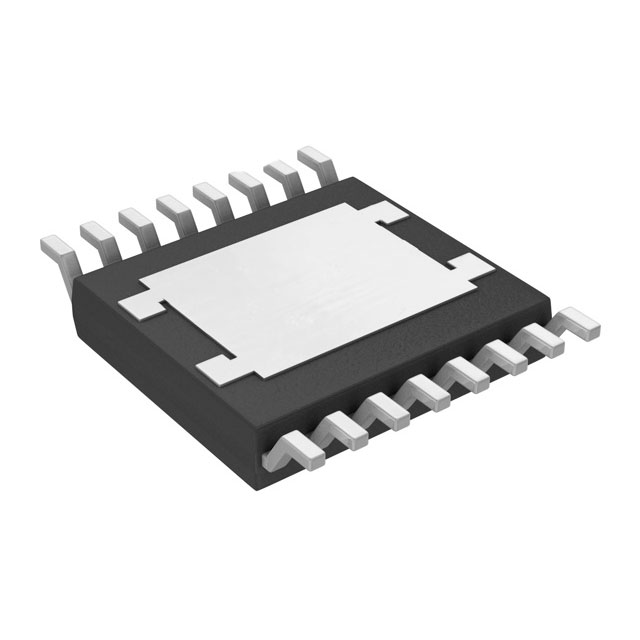

Analog Devices Inc./Maxim Integrated LT3086IFE#PBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	16-TSSOP (0.173" 4.40mm Width) Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-TSSOP-EP	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086EFE#TRPBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	16-TSSOP (0.173" 4.40mm Width) Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-TSSOP-EP	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086EDHD#PBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	16-WFDFN Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-DFN (5x4)	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086IDHD#PBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	16-WFDFN Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-DFN (5x4)	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086IR#TRPBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	0.54 V	Over Current Over Temperature Reverse Polarity	DDPAK-7	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086ET7#PBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Through Hole	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	TO-220-7 Formed Leads	0.54 V	Over Current Over Temperature Reverse Polarity	TO-220-7	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086IFE#TRPBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	16-TSSOP (0.173" 4.40mm Width) Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-TSSOP-EP	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086EDHD#TRPBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	16-WFDFN Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-DFN (5x4)	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086HFE#PBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	150 °C	-40 °C	16-TSSOP (0.173" 4.40mm Width) Exposed Pad	0.54 V	Over Current Over Temperature Reverse Polarity	16-TSSOP-EP	0.4 V	Positive
Analog Devices Inc./Maxim Integrated LT3086IR#PBF	Current Limit Enable Power Good Tracking	32 V	Adjustable	80 dB	Surface Mount	2.1 A	2.4 mA	1	88 mA	125 °C	-40 C	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	0.54 V	Over Current Over Temperature Reverse Polarity	DDPAK-7	0.4 V	Positive
