OA92EC Series
Manufacturer: ORION FANS
Beta
⌘K

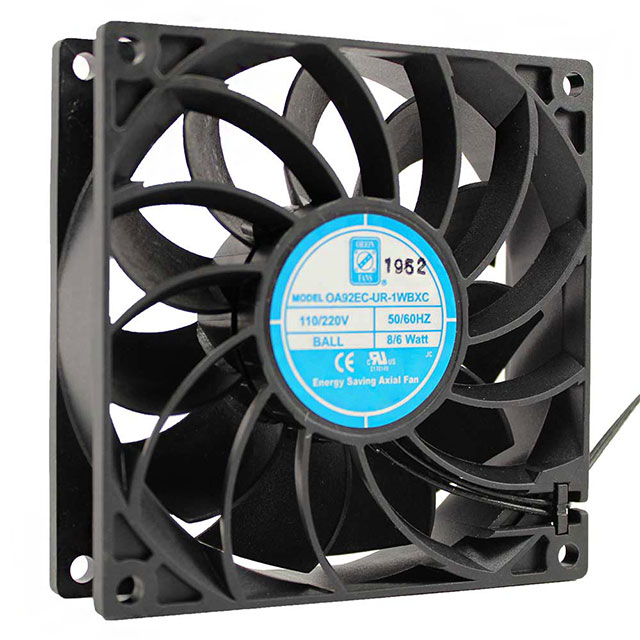

EC FAN 92X25MM 85-265VAC 56CFM
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Noise | Termination | Features | Fan Type | Static Pressure | Static Pressure | Air Flow | Air Flow | Voltage - Rated [Max] | Voltage - Rated [Min] | Width [y] | Weight | Weight | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) | 265 VAC | 85 VAC | 70000 Hrs | 92 mm | 92 mm | Ball | 35 dB | 2 Wire Leads | Dual Voltage Electronic Commutation (EC) | Tubeaxial | 39.8 Pa | 0.16 in H2O | 56 CFM | 1.57 m³/min | 220 VAC | 110 VAC | 25 mm | 102.06 g | 0.225 lb | 70 °C | -10 °C | CE cURus TUV UR | 2600 RPM |
