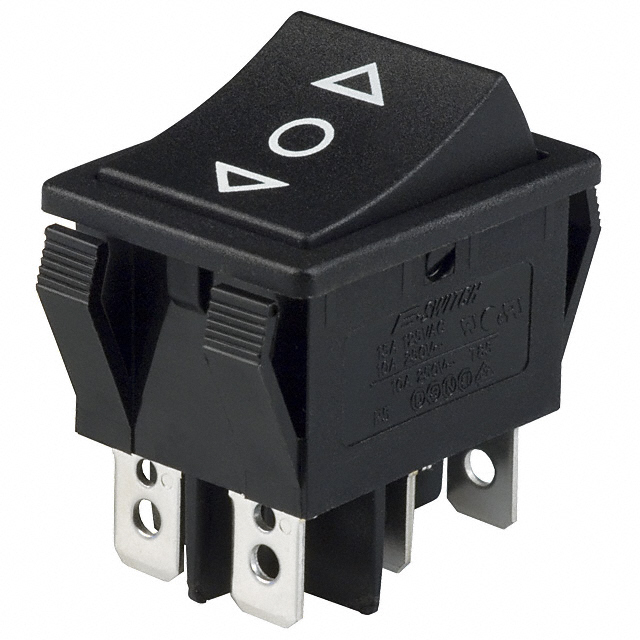

R5DBLKBL Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPDT 15A 125V
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Approval Agency | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Switch Function | Termination Style | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 30000 Steps | 15 A | CSA UL | Concave (Curved) | 55 °C | -20 ░C | Triangular Arrows with O | On-Off-On | Quick Connect - 0.250" (6.3mm) | Black | 30 mm | 22.2 mm | Panel Mount Snap-In | 125 V | DPDT |
