Ultra-Fast 110 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ULTRA-FAST 110/125 ASY REC 16-14AWG TPBR

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Color	Terminal Type	Length - Overall	Length - Overall	Mounting Type	Insulation	Gender	Termination	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Tab Thickness [custom]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]

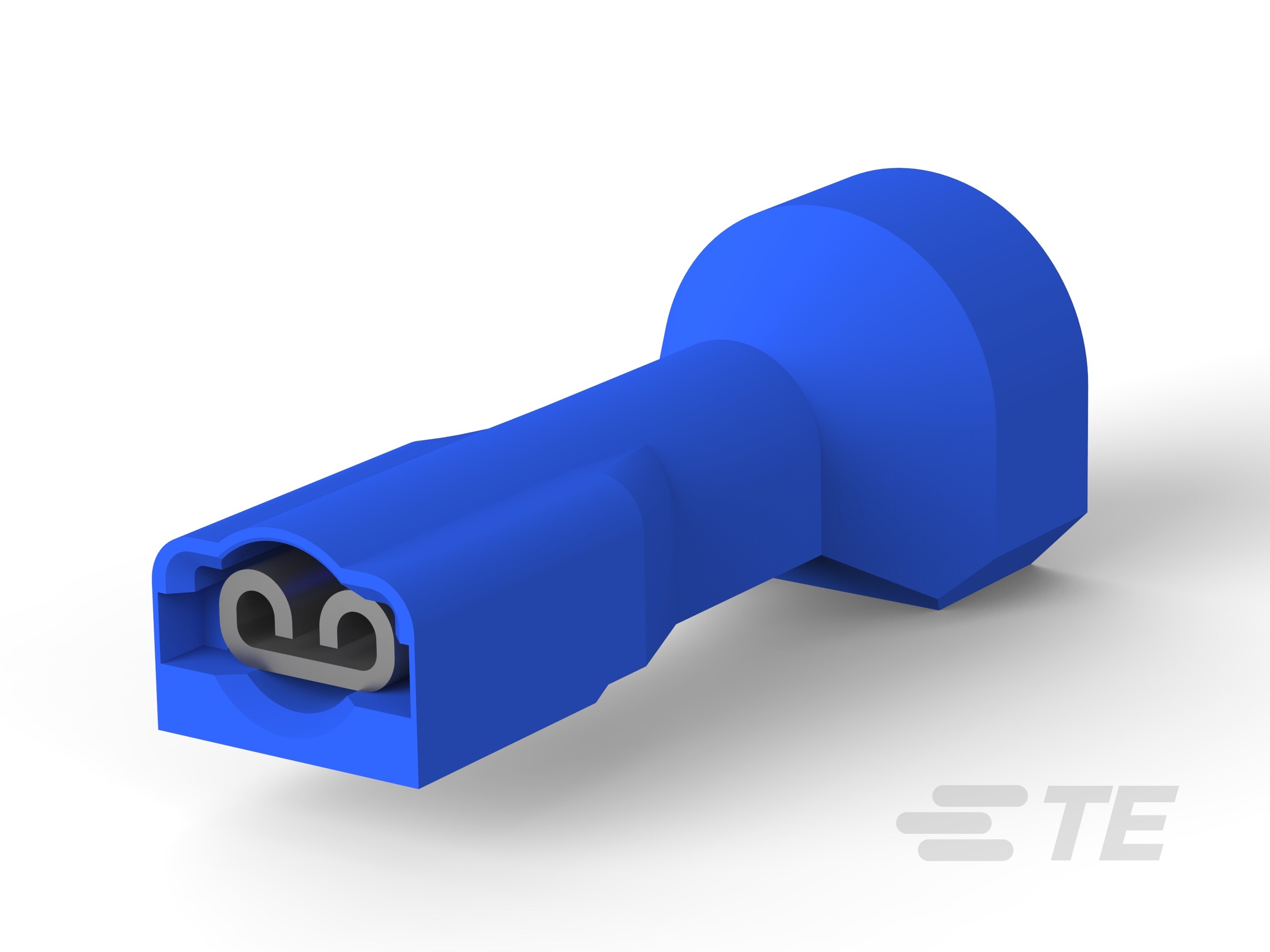

TE Connectivity AMP Connectors 3-520370-2	6.6 mm	0.26 in	0.02 in	0.51 mm	Blue	Standard	21.97 mm	0.865 in	Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	14 AWG	16 AWG	Tin

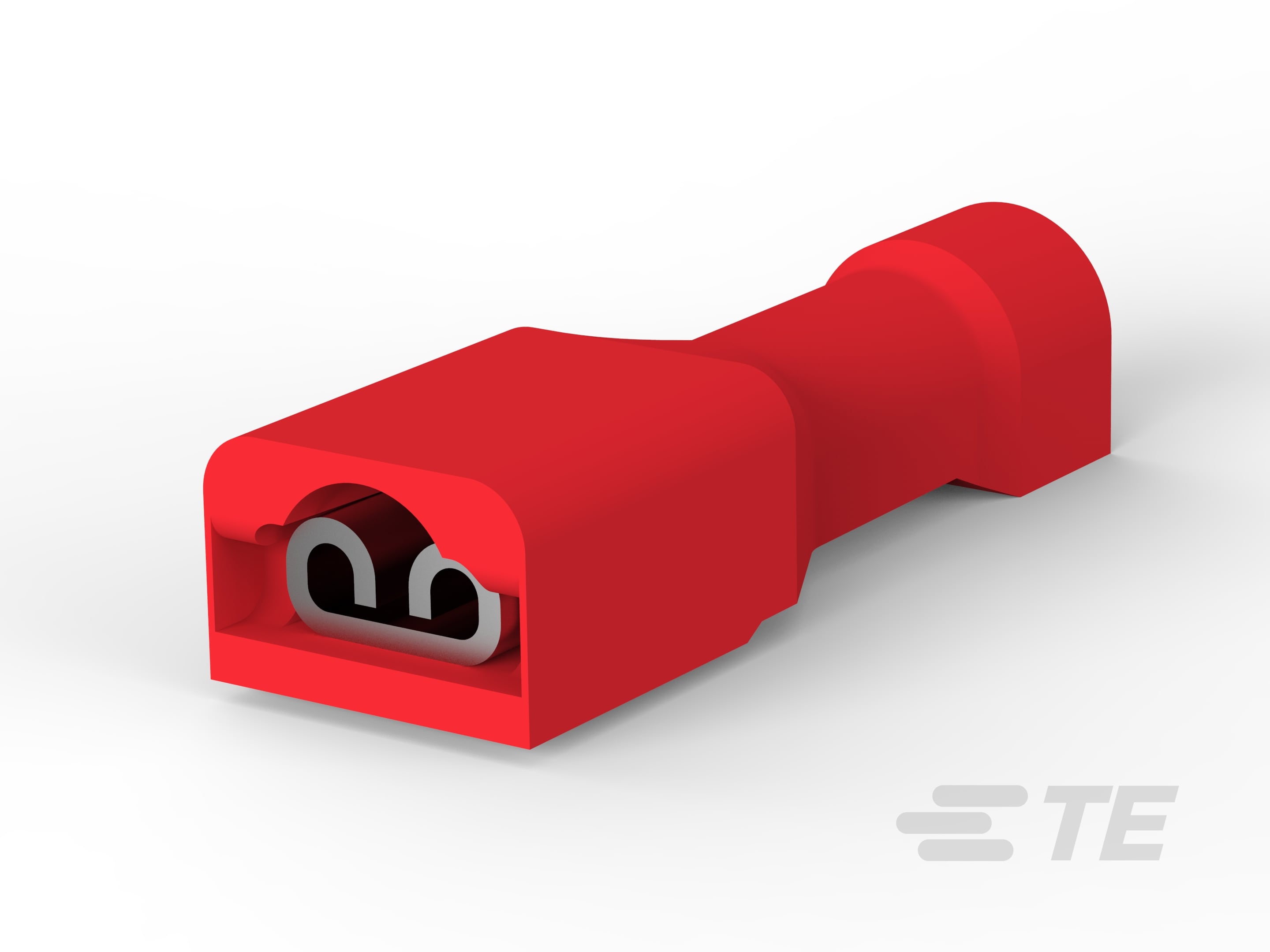

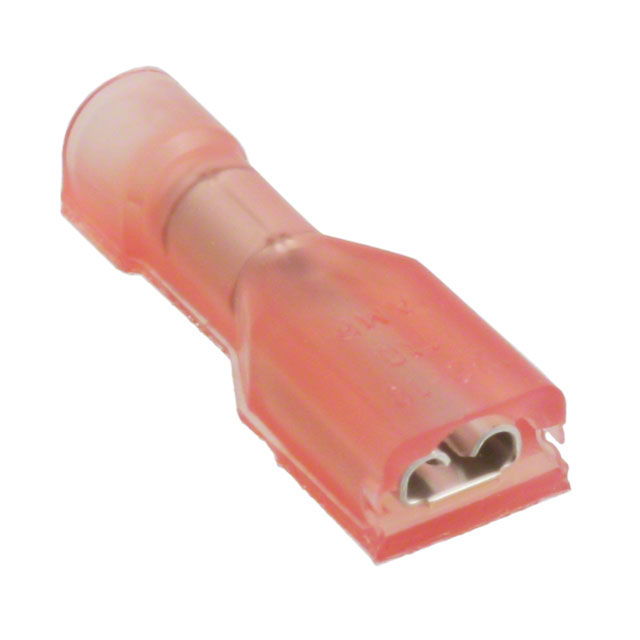

TE Connectivity AMP Connectors 2-520080-2	3.05 mm	0.12 in		0.41 mm	Red	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin	0.016 in	0.735 in	18.67 mm

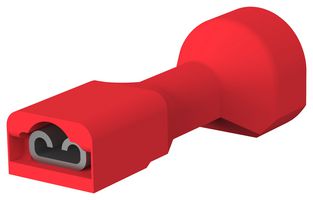

TE Connectivity AMP Connectors 2-520310-2	5.84 mm	0.23 in	0.032 in	0.81 mm	Red	Standard	21.97 mm	0.865 in	Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin

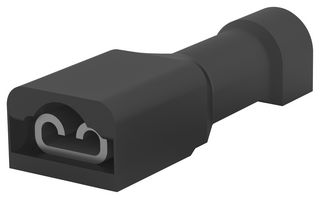

TE Connectivity AMP Connectors 9-520272-2	3.05 mm	0.12 in	0.032 in	0.81 mm	Black	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin		0.735 in	18.67 mm
TE Connectivity AMP Connectors 2-520273-2			0.032 in	0.81 mm	Red	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin		0.735 in	18.67 mm
TE Connectivity AMP Connectors 2-520306-2			0.02 in	0.51 mm	Red	Standard	21.97 mm	0.865 in	Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin
TE Connectivity AMP Connectors 2-520272-2	3.05 mm	0.12 in	0.032 in	0.81 mm	Red	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin		0.735 in	18.67 mm

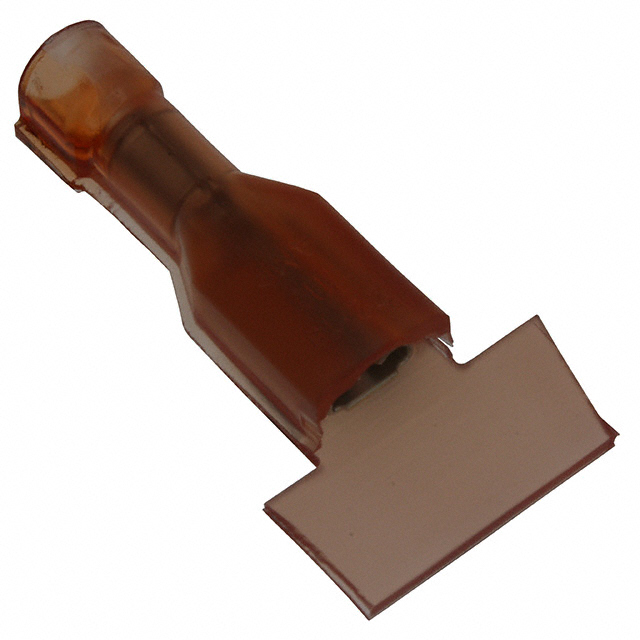

TE Connectivity AMP Connectors 2-520932-2			0.02 in	0.51 mm	Red	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin		0.735 in	18.67 mm	3.05 mm	1.52 mm	0.12 "	0.06 "

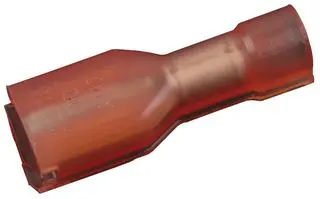

TE Connectivity AMP Connectors 2-520081-2	3.05 mm	0.12 in		0.41 mm	Red	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	17.5 AWG	22 AWG	Tin	0.016 in	0.735 in	18.67 mm

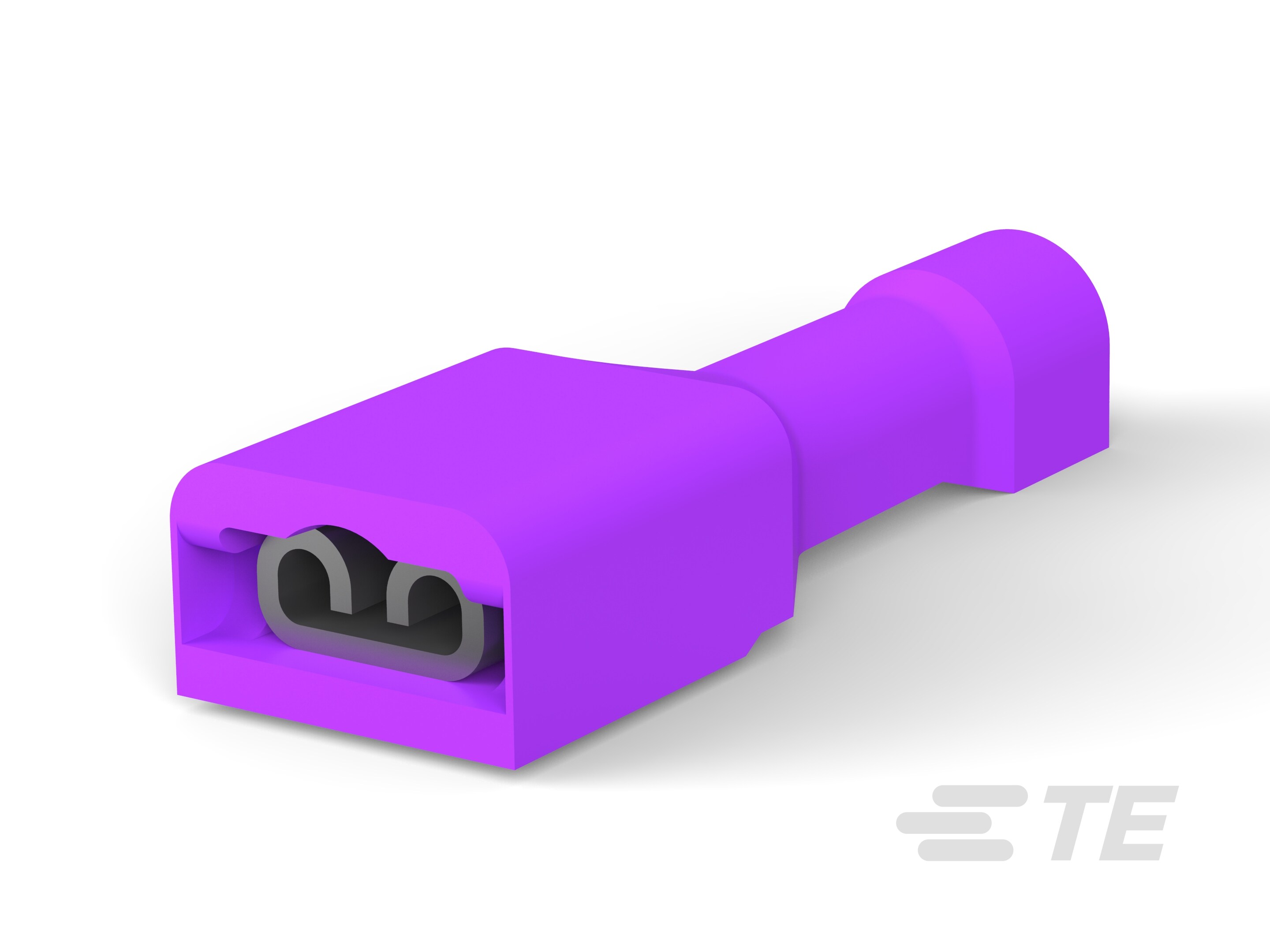

TE Connectivity AMP Connectors 7-520365-2			0.02 in	0.51 mm	Violet	Standard			Free Hanging (In-Line)	Fully Insulated	Female	Crimp	Brass	22 AWG	26 AWG	Tin		0.735 in	18.67 mm
