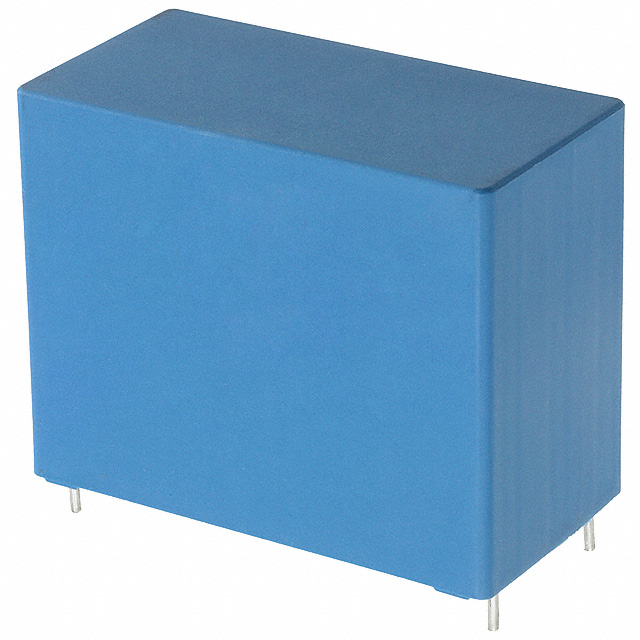

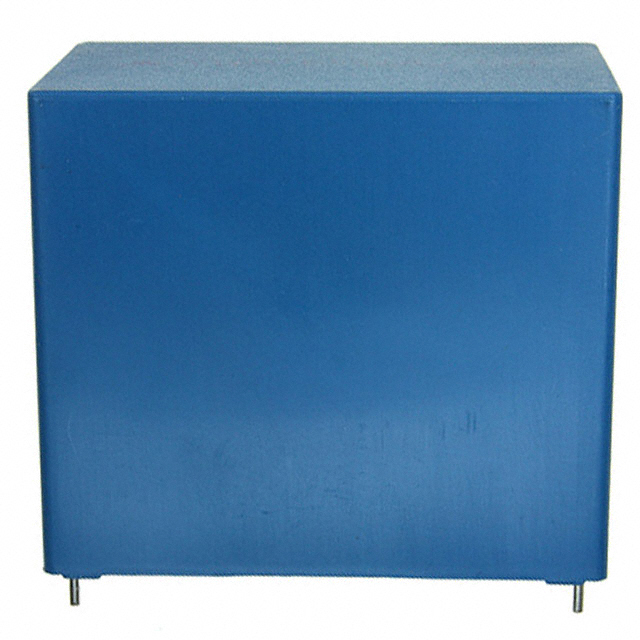

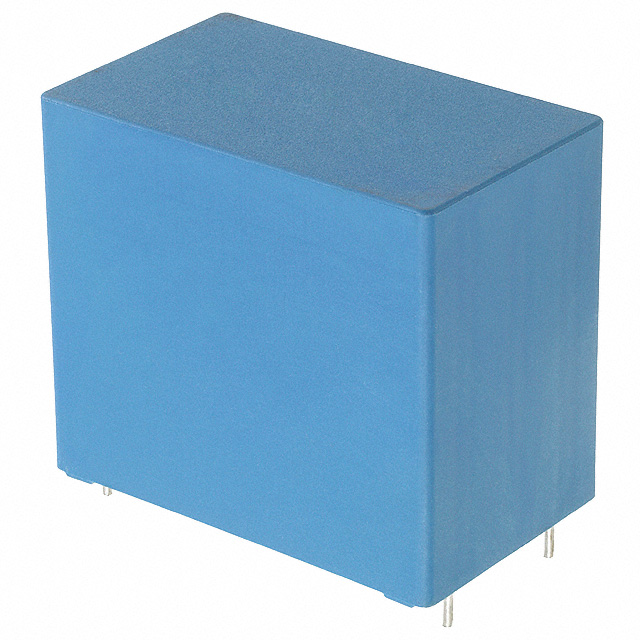

B32778G Series

Catalog

CAP FILM 60UF 800VDC RAD 4 LEAD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Termination	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Mounting Type	Voltage Rating - DC	Lead Spacing	Lead Spacing	Capacitance	Dielectric Material	Applications	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC
EPCOS - TDK Electronics B32778G8606K000	57.5 mm	1.378 in	35 mm	2.264 in	10 %	PC Pins	5.1 mOhm	-40 C	105 ░C	Long Life	1.969 in	50 mm	Radial - 4 Leads	Through Hole	800 V	52.5 mm	2.067 in	60 µF	Polypropylene (PP) Metallized	DC Filtering DC Link
EPCOS - TDK Electronics B32778G5606K000		30 mm		57.5 mm	10 %	PC Pins	5.8 mOhms	-40 C	105 ░C	Long Life			Radial - 4 Leads	Through Hole	575 V	52.5 mm	2.067 in	60 µF	Polypropylene (PP) Metallized	DC Filtering DC Link	2.264 in	1.181 in	1.772 "	45 mm
EPCOS - TDK Electronics B32778G4756J000		30 mm		57.5 mm	5 %	PC Pins	5.6 mOhms	-40 C	105 ░C	Long Life			Radial - 4 Leads	Through Hole	450 V	52.5 mm	2.067 in	75 µF	Polypropylene (PP) Metallized	DC Filtering DC Link	2.264 in	1.181 in	1.772 "	45 mm
EPCOS - TDK Electronics B32778G1276K000	57.5 mm	1.378 in	35 mm	2.264 in	10 %	PC Pins	7.3 mOhms	-40 C	105 ░C	Long Life	1.969 in	50 mm	Radial - 4 Leads	Through Hole	1300 V	52.5 mm	2.067 in	27 µF	Polypropylene (PP) Metallized	DC Filtering DC Link					1.3 kV
EPCOS - TDK Electronics B32778G5606J000		30 mm		57.5 mm	5 %	PC Pins	5.8 mOhms	-40 C	105 ░C	Long Life			Radial - 4 Leads	Through Hole	575 V	52.5 mm	2.067 in	60 µF	Polypropylene (PP) Metallized	DC Filtering DC Link	2.264 in	1.181 in	1.772 "	45 mm
EPCOS - TDK Electronics B32778G4107K000	57.5 mm	1.378 in	35 mm	2.264 in	10 %	PC Pins	4.3 mOhm	-40 C	105 ░C	Long Life	1.969 in	50 mm	Radial - 4 Leads	Through Hole	450 V	52.5 mm	2.067 in	100 µF	Polypropylene (PP) Metallized	DC Filtering DC Link
EPCOS - TDK Electronics B32778G1206K000		30 mm		57.5 mm	10 %	PC Pins	9.7 mOhm	-40 C	105 ░C	Long Life			Radial - 4 Leads	Through Hole	1300 V	52.5 mm	2.067 in	20 µF	Polypropylene (PP) Metallized	DC Filtering DC Link	2.264 in	1.181 in	1.772 "	45 mm	1.3 kV
EPCOS - TDK Electronics B32778G4756K000		30 mm		57.5 mm	10 %	PC Pins	5.6 mOhms	-40 C	105 ░C	Long Life			Radial - 4 Leads	Through Hole	450 V	52.5 mm	2.067 in	75 µF	Polypropylene (PP) Metallized	DC Filtering DC Link	2.264 in	1.181 in	1.772 "	45 mm
EPCOS - TDK Electronics B32778G0406J000	57.5 mm	1.378 in	35 mm	2.264 in	5 %	PC Pins	6.2 mOhms	-40 C	105 ░C	Long Life	1.969 in	50 mm	Radial - 4 Leads	Through Hole	1100 V	52.5 mm	2.067 in	40 µF	Polypropylene (PP) Metallized	DC Filtering DC Link					1.1 kV
EPCOS - TDK Electronics B32778G1276J000	57.5 mm	1.378 in	35 mm	2.264 in	5 %	PC Pins	7.3 mOhms	-40 C	105 ░C	Long Life	1.969 in	50 mm	Radial - 4 Leads	Through Hole	1300 V	52.5 mm	2.067 in	27 µF	Polypropylene (PP) Metallized	DC Filtering DC Link					1.3 kV
