284392 Series

Catalog

TERM BLK 3P SIDE ENT 3.81MM PCB

Part	Contact Material - Plating [custom]	Torque - Screw	Torque - Screw	Screw Material - Plating	Pitch [x]	Pitch [x]	Screw Thread	Mounting Type	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Voltage	Positions Per Level	Current	Color	Wire Termination	Features	Clamp Material - Plating	Mating Orientation
TE Connectivity Raychem Cable Protection 284392-3	Brass - Tin Plated	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	0.15 in	3.81 mm	M3	Through Hole	1	14 AWG	30 AWG	300 V	3	12 A	Green	Screw - Rising Cage Clamp	Interlocking (Side)	Brass - Nickel Plated	Horizontal with Board
TE Connectivity Raychem Cable Protection 1-284392-4	Brass - Tin Plated	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	0.15 in	3.81 mm	M3	Through Hole	1	14 AWG	30 AWG	300 V	14	12 A	Green	Screw - Rising Cage Clamp	Interlocking (Side)	Brass - Nickel Plated	Horizontal with Board

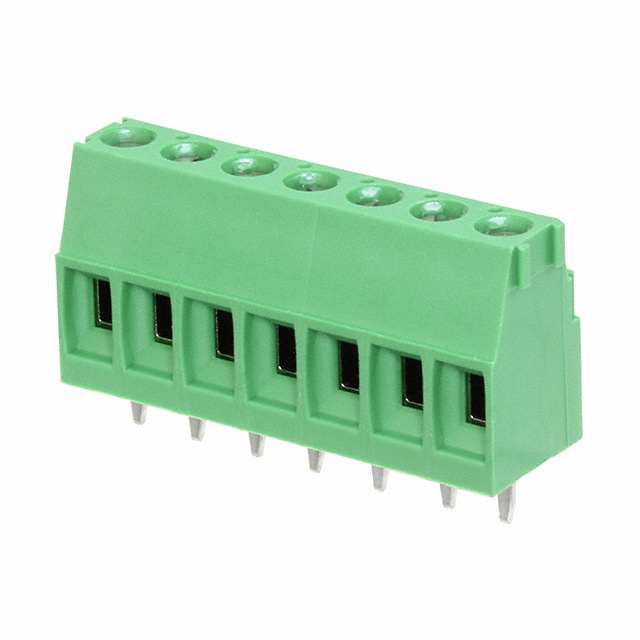

TE Connectivity Raychem Cable Protection 284392-7	Brass - Tin Plated	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	0.15 in	3.81 mm	M3	Through Hole	1	14 AWG	30 AWG	300 V	7	12 A	Green	Screw - Rising Cage Clamp	Interlocking (Side)	Brass - Nickel Plated	Horizontal with Board

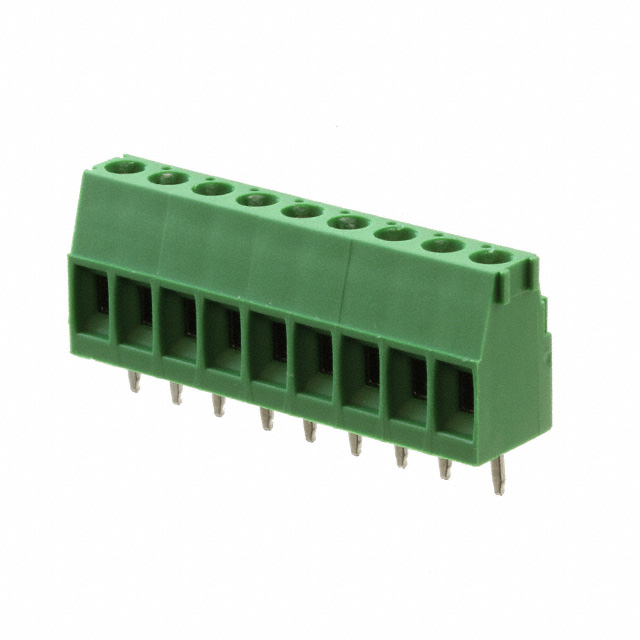

TE Connectivity Raychem Cable Protection 284392-9	Brass - Tin Plated	2.2 Lb-In	0.25 Nm	Brass - Nickel Plated	0.15 in	3.81 mm	M3	Through Hole	1	14 AWG	30 AWG	300 V	9	12 A	Green	Screw - Rising Cage Clamp	Interlocking (Side)	Brass - Nickel Plated	Horizontal with Board
