E050 Series

Manufacturer: SolaHD

Catalog

PWR XFMR LAMINATED 50VA CHAS MT

Part	Height - Seated (Max) [Max] [z]	Termination Style	Type	Size / Dimension [y]	Size / Dimension [x]	Primary Winding(s)	Secondary Winding(s)	Power - Max [Max]	Mounting Type	Voltage - Secondary (Full Load)	Voltage - Primary
SolaHD E050JN	75.2 mm	Quick Connect Solder	Laminated Core	86.1 mm	110.7 mm	Multiple Taps Single	Multiple Taps Single	50 VA	Chassis Mount
SolaHD E050EWA		Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm			50 VA	Chassis Mount
SolaHD E050EW		Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm			50 VA	Chassis Mount
SolaHD E050D	69.1 mm	Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm	Dual	Single	50 VA	Chassis Mount	24 V	240 V 480 V
SolaHD E050TC	75.2 mm	Quick Connect Solder	Laminated Core	86.1 mm	110.7 mm	Multiple Taps Single	Multiple Taps Single	50 VA	Chassis Mount
SolaHD E050JL	69.1 mm	Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm	Multiple Taps Single	Multiple Taps Single	50 VA	Chassis Mount
SolaHD E050W		Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm			50 VA	Chassis Mount
SolaHD E050WA		Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm			50 VA	Chassis Mount
SolaHD E050EWB		Quick Connect Solder	Laminated Core	76.5 mm	101.3 mm			50 VA	Chassis Mount

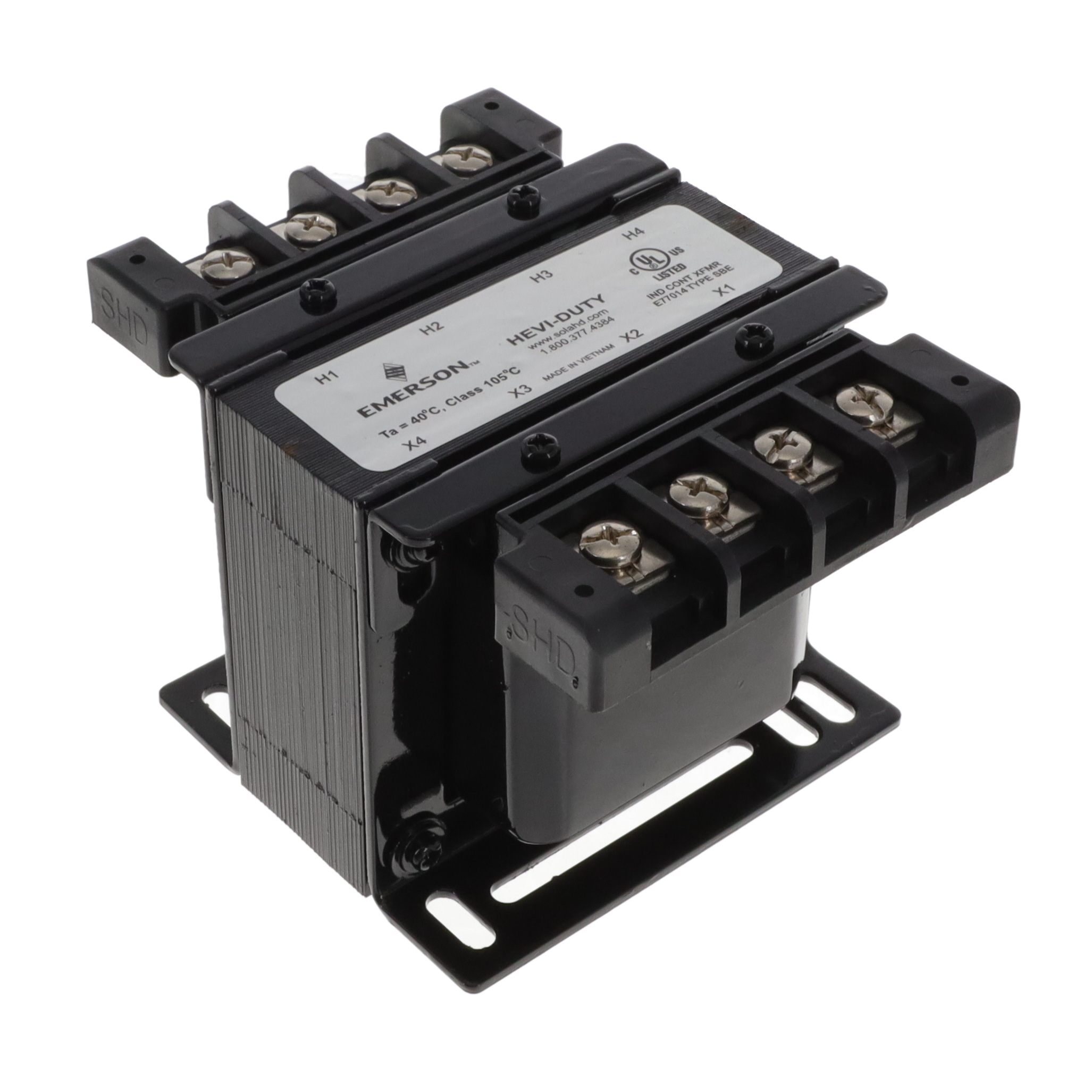

SolaHD E050TE		Quick Connect Solder	Laminated Core			Multiple Taps Single	Multiple Taps Single	50 VA	Chassis Mount
