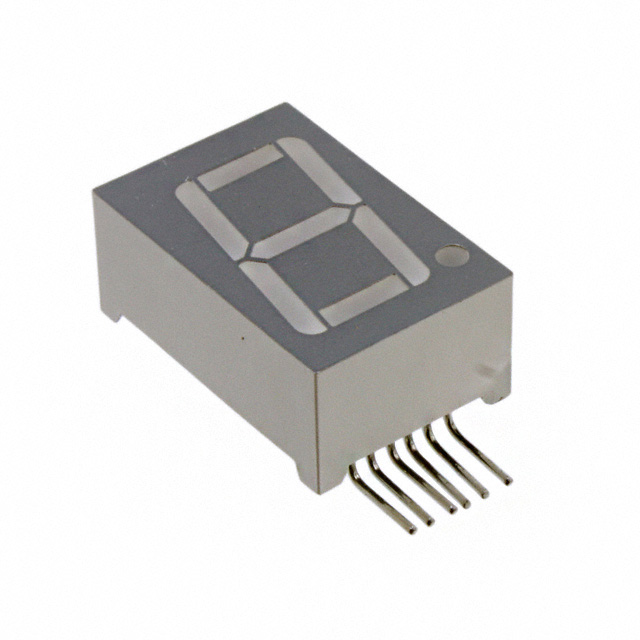

LDS-M512 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISP 7SEG 0.56" SGL GRN 6SIP RA
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Package / Case | Power Dissipation (Max) [Max] | Current - Test | Display Type | Millicandela Rating | Number of Characters | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 0.496 in | 0.748 in | 0.315 in | 12.6 mm | 19 mm | 8 mm | 0.56 in | 14.2 mm | Common Anode | Green | 2.2 V | 6-SIP Right Angle | 105 mW | 10 mA | 7-Segment | 7 mcd | 1 | |
 Lumex Opto/Components Inc. | 0.496 in | 0.748 in | 0.315 in | 12.6 mm | 19 mm | 8 mm | 0.56 in | 14.22 mm | Common Anode | Green | 2.2 V | 6-SIP Right Angle | 105 mW | 10 mA | 7-Segment | 2.25 mcd | 1 | 565 nm |
