SX1211 Series

Catalog

RF TRANSCEIVER, 863MHZ TO 960MHZ, FSK, OOK, 200KBPS, 12.5SBM OUT, 2.1V TO 3.6V, TQFN-32

Part	Power - Output	Current - Receiving	Supplier Device Package	RF Family/Standard	Modulation	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Serial Interfaces	Current - Transmitting [Min]	Current - Transmitting [Max]	Data Rate (Max)	Sensitivity	Type	Mounting Type

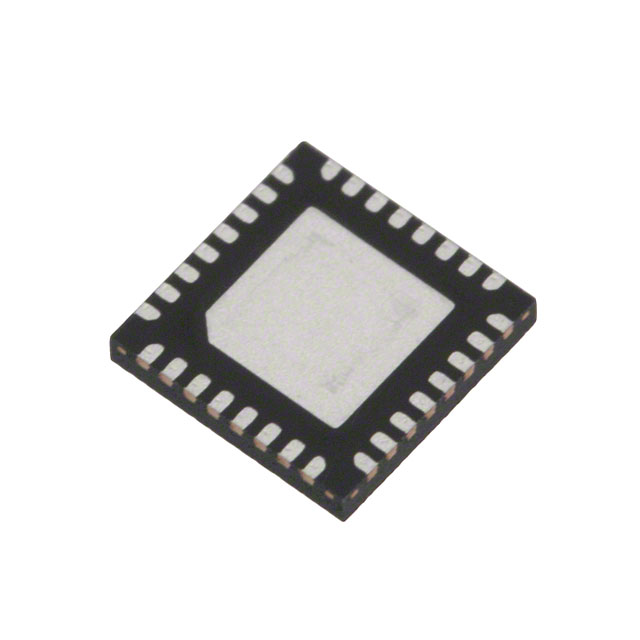

Semtech Corporation SX1211I084TRT	12.5 dBm	3 mA	32-TQFN 5x5	General ISM < 1GHz	FSK OOK	3.6 V	2.1 V	85 °C	-40 C	863 MHz 902 MHz 950 MHz	870 MHz 928 MHz 960 MHz	SPI	16 mA	25 mA	200 kbps	-113 dBm	TxRx Only	Surface Mount
