11-8 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

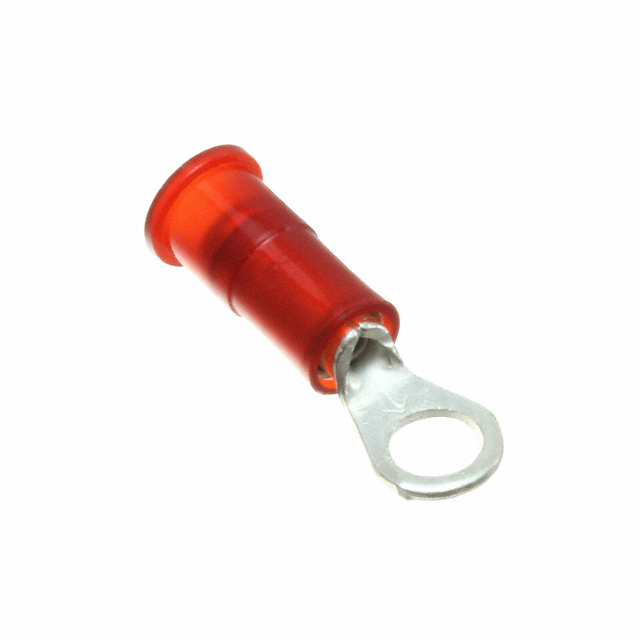

22-18 AWG VINYL INSULATED BUTTED SEAM RING TONGUE TERMINAL
| Part | Material - Insulation | Insulation Diameter | Insulation Diameter | Length - Overall [x] | Length - Overall [x] | Mounting Type | Features | Contact Finish | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation | Color | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Thickness | Thickness | Termination | Stud/Tab Size | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Vinyl | 0.145 in | 3.68 mm | 20.32 mm | 0.8 " | Free Hanging (In-Line) | Butted Seam | Tin | Circular | 6.35 mm | 0.25 " | Insulated | Red | 22 AWG | 17.5 AWG | Copper ETP | 0.76 mm | 0.03 in | Crimp | 8 Stud | ||
 3M Electronic Specialty | Nylon Polyamide (PA) | 0.145 in | 3.68 mm | Free Hanging (In-Line) | Butted Seam | Circular | 6.35 mm | 0.25 " | Insulated | Red | 22 AWG | 17.5 AWG | 0.76 mm | 0.03 in | Crimp | 8 Stud | 20.07 mm | 0.79 in |
