CP147660 Series

Catalog

PELTIER, 7.6 X 6 X 1.95 MM, 1.4

Part	Features	Number of Stages	Resistance	Height [z]	Type	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Current - Max [Max]	Qmax @ Th	Delta Tmax @ Th
Same Sky (Formerly CUI Devices) CP147660-195	Lead Wires Non-Sealed	2	1.17 Ohms	1.95 mm	TEC (Thermoelectric Cooler)	150 °C	6 mm	7.6 mm	2 V	1.4 A	1.6 W	70 °C

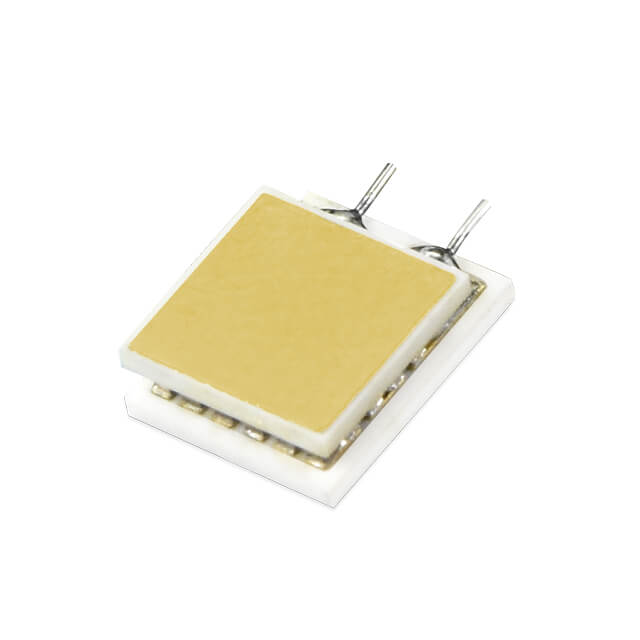

Same Sky (Formerly CUI Devices) CP147660-236P	Lead Wires Non-Sealed		1.17 Ohms			150 °C	6 mm	7.6 mm	2 V	1.4 A	1.6 W	70 °C
Same Sky (Formerly CUI Devices) CP147660-195	Lead Wires Non-Sealed		1.17 Ohms	1.95 mm		150 °C	6 mm	7.6 mm	2 V	1.4 A	1.6 W	70 °C
Same Sky (Formerly CUI Devices) CP147660-236P	Lead Wires Non-Sealed	2	1.17 Ohms		TEC (Thermoelectric Cooler)	150 °C	6 mm	7.6 mm	2 V	1.4 A	1.6 W	70 °C
