RP73PF1E Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

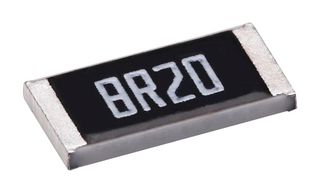

SMD CHIP RESISTOR, 4.53 KOHM, ± 0.1%, 100 MW, 0402 [1005 METRIC], THIN FILM, HIGH POWER

...

Part	Composition	Supplier Device Package	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Tolerance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]
TE Connectivity AMP Connectors RP73PF1E4K53BTDF	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	4.53 kOhms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E16R2BTDF	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	16.2 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E715RBTD	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	715 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E19R6BTD	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	19.6 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E2K21BTD	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	2.21 kOhms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E324RBTD	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	324 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E38K3BTD	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	38.3 kOhms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E10R5BTDF	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	10.5 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E22R6BTD	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	22.6 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
TE Connectivity AMP Connectors RP73PF1E19R6BTDF	Thin Film	0402	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	0.1 W	0.1 W	0.35 mm	0.014 "	19.6 Ohms	0.1 %	25 ppm/°C	155 C	-55 C	2
