PT07A Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 61POS SLDR CUP

Part	Shielding	Termination	Fastening Type	Connector Type	Applications	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Orientation	Mounting Type	Insert Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Qualification	Contact Material	Color	Contact Finish - Mating	Shell Finish	Shell Material	Primary Material	Shell Size - Insert Length	Shell Size - Insert Width	Backshell Material	Plating	Backshell Material, Plating
Amphenol Aerospace Operations PT07A-24-61P(113)	Unshielded	Solder Cup	Bayonet Lock	Male Pins Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	61	N (Normal)	Panel Mount	Neoprene	61	24	MIL-DTL-26482 Series I	Copper Alloy
Amphenol Aerospace Operations PT07A-14-19SPCT	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	19	N (Normal)	Panel Mount	Neoprene	19	14 S	MIL-DTL-26482 Series I	Copper Alloy
Amphenol Aerospace Operations PT07A-8-3PW	Unshielded	Solder Cup	Bayonet Lock	Male Pins Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	3	W	Panel Mount	Neoprene			MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal	8 mm	3 mm
Amphenol Aerospace Operations PT07A16-26P-027	Unshielded	Solder Cup	Bayonet Lock	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Bulkhead Front Side Nut	125 °C	-55 °C	26	N (Normal)	Panel Mount	Neoprene	26	16 S	MIL-DTL-26482 Series I	Copper Alloy	Black	Gold	Black Zinc Cobalt	Aluminum	Metal			Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT07A-10-98SX	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	6	X	Panel Mount	Neoprene	98	10	MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal
Amphenol Aerospace Operations PT07A-8- 4P	Unshielded	Solder Cup	Bayonet Lock	Male Pins Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	4	N (Normal)	Panel Mount	Neoprene			MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal	8 mm	4 mm			Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT07A-8-3SX	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	3	X	Panel Mount	Neoprene			MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal	8 mm	3 mm

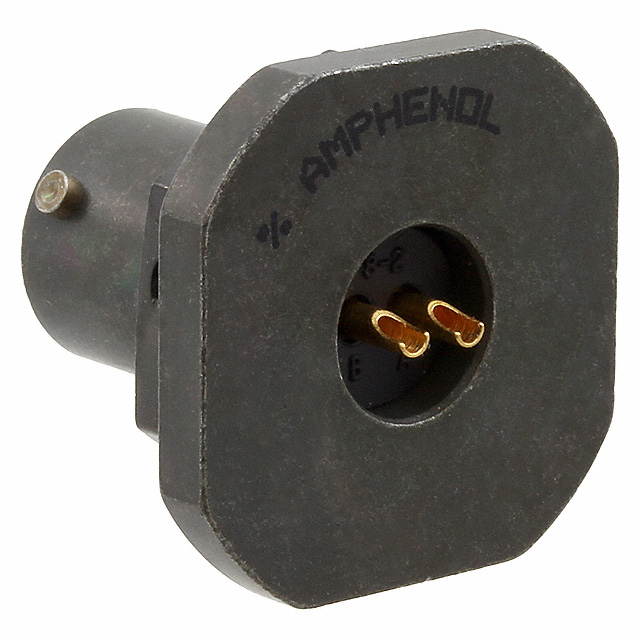

Amphenol Aerospace Operations PT07A-8-2S	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	2	N (Normal)	Panel Mount	Neoprene			MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal	8 mm	2 mm			Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT07A-8-4P	Unshielded	Solder Cup	Bayonet Lock	Male Pins Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	4	N (Normal)	Panel Mount	Neoprene			MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal	8 mm	4 mm			Aluminum Olive Drab Cadmium

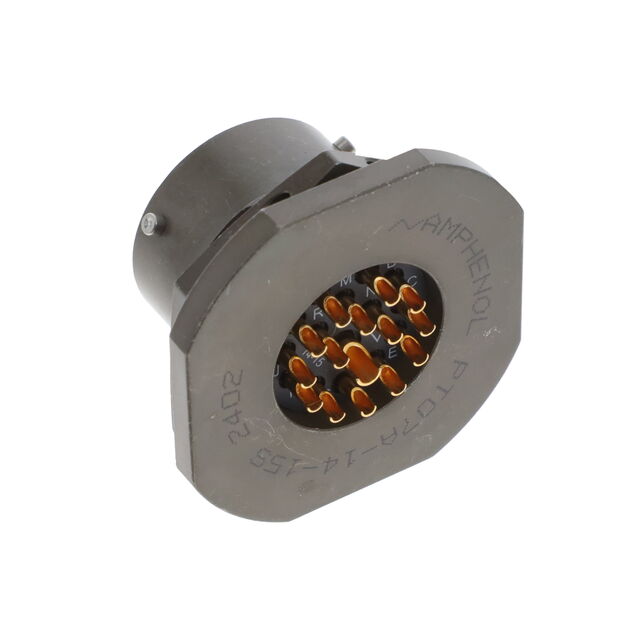

Amphenol Aerospace Operations PT07A-14-15S	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	125 °C	-55 °C	15	N (Normal)	Panel Mount	Neoprene	15	14 S	MIL-DTL-26482 Series I	Copper Alloy	Olive Drab	Gold	Cadmium Olive Drab Chromate	Aluminum	Metal					Aluminum Olive Drab Cadmium
