CL-1-2005 Series

Catalog

PMI DIA .555" (14MM) R/G 48V

Part	Voltage	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Panel Cutout Shape	Ratings	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Ingress Protection	Type	Lamp Color	Current	Lens Style	Termination Style	Lens Color	Voltage	Voltage [custom]	Voltage [custom]
Visual Communications Company - VCC CL-1-2005-9912-I	1.95 V	2.1 V	0.56 in	14.2 mm	48 V 48 V	Round	DC	574 nm 645 nm	750 mcd	130 mcd	50 °	IP67	LED	Green Red	20 mA 20 mA	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	Green Red
Visual Communications Company - VCC CL-1-2005-9907-I	1.95 V	2.1 V	0.56 in	14.2 mm	5 V 5 V	Round	DC	574 nm 645 nm	750 mcd	130 mcd	50 °	IP67	LED	Green Red	20 mA 20 mA	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	Green Red

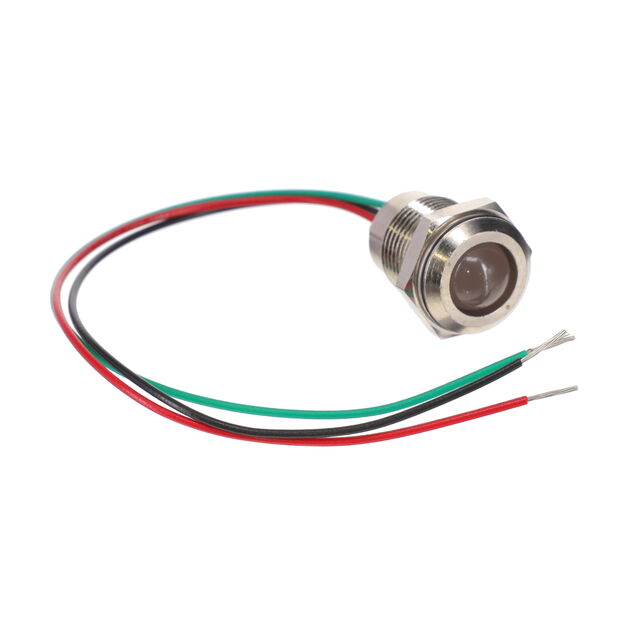

Visual Communications Company - VCC CL-1-2005-9910-I			0.551 in	14 mm		Round	DC	574 nm 645 nm	750 mcd	130 mcd	50 °	IP67	LED	Green Red	20 mA	Round with Domed Top			24V Green 24V Red

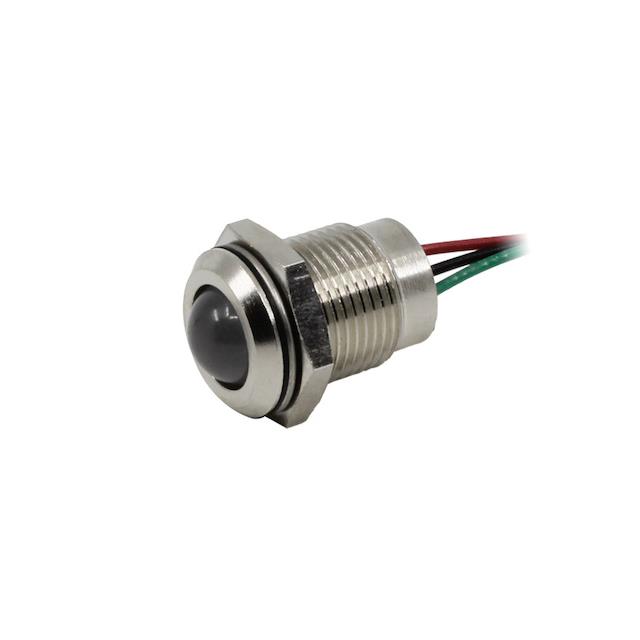

Visual Communications Company - VCC CL-1-2005-9908-I			0.551 in	14 mm		Round	DC	574 nm 645 nm	750 mcd	130 mcd	50 °	IP67	LED	Green Red	20 mA	Round with Domed Top				12 V	12 V
Visual Communications Company - VCC CL-1-2005-9914-I	1.95 V	2.1 V	0.56 in	14.2 mm	60 V	Round	DC	574 nm 645 nm	750 mcd	130 mcd	50 °	IP67	LED	Green Red	20 mA 20 mA	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	Green Red
