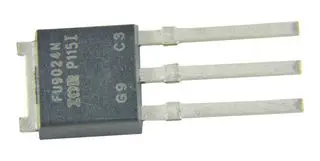

IRFU9024 Series
Manufacturer: INFINEON
Beta
⌘K
POWER MOSFET, P CHANNEL, 55 V, 11 A, 0.175 OHM, TO-251, THROUGH HOLE
| Part | Supplier Device Package | Rds On (Max) @ Id, Vgs | Mounting Type | FET Type | Drain to Source Voltage (Vdss) | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | Power Dissipation (Max) | Package / Case | Technology | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | IPAK (TO-251AA) | 175 mOhm | Through Hole | P-Channel | 55 V | 20 V | 19 nC | 11 A | 150 °C | -55 °C | 38 W | IPAK TO-251-3 Short Leads TO-251AA | MOSFET (Metal Oxide) | 10 V | 350 pF | 4 V |
