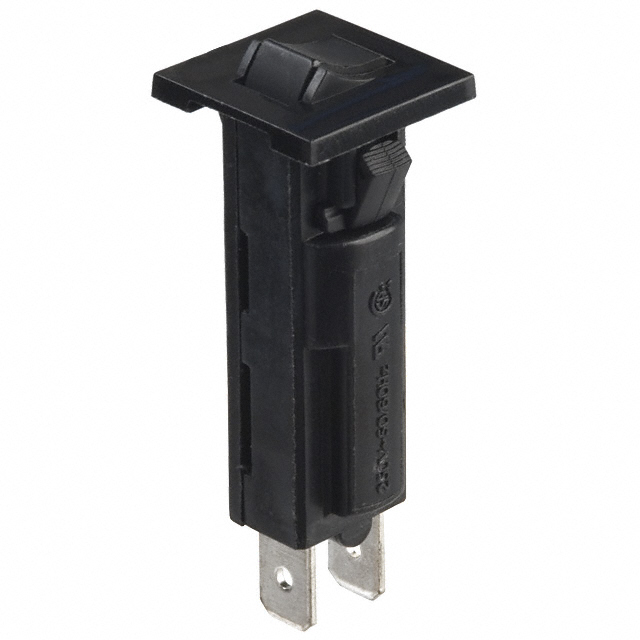

Potter & Brumfield W28 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CIR BRKR THRM 8A 250VAC 32VDC
| Part | Number of Poles | Voltage Rating - AC | Voltage Rating - DC | Current Rating (Amps) | Mounting Type | Actuator Type | Breaker Type |
|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 8 A | Panel Mount | Push to Reset | Thermal |
 TE Connectivity AMP Connectors | 1 | 250 V | 50 VDC | 2 A | Panel Mount | Push to Reset | Thermal |
TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 16 A | Panel Mount | Push to Reset | Thermal |

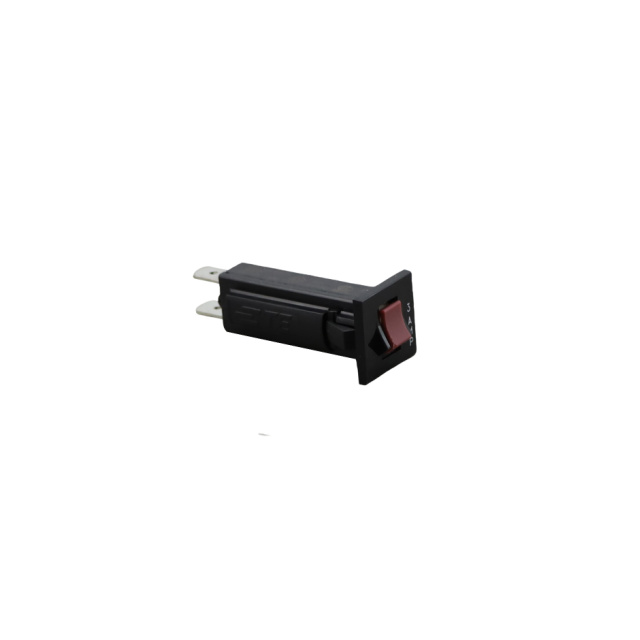

 TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 3 A | Panel Mount | Push to Reset | Thermal |
 TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 10 A | Panel Mount | Push to Reset | Thermal |
 TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 4 A | Panel Mount | Push to Reset | Thermal |

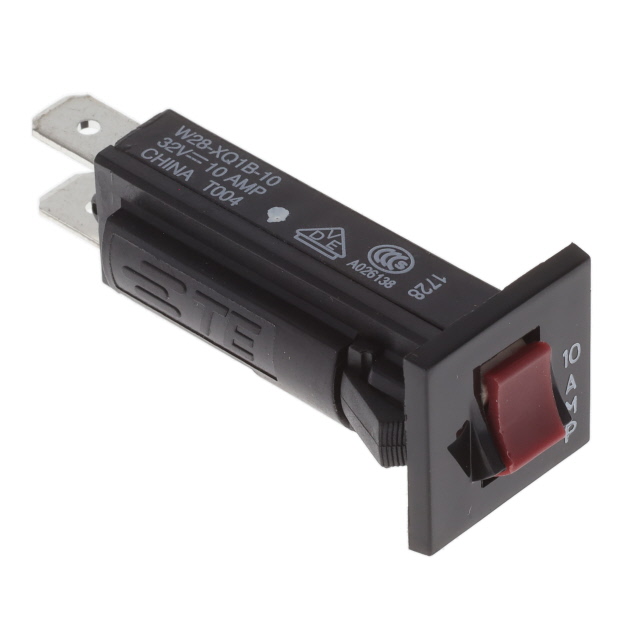

 TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 10 A | Panel Mount | Push to Reset | Thermal |
TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 7 A | Panel Mount | Push to Reset | Thermal |
TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 0.5 A | Panel Mount | Push to Reset | Thermal |
TE Connectivity AMP Connectors | 1 | 250 V | 32 V | 750 mA | Panel Mount | Push to Reset | Thermal |
