4660 Series

Catalog

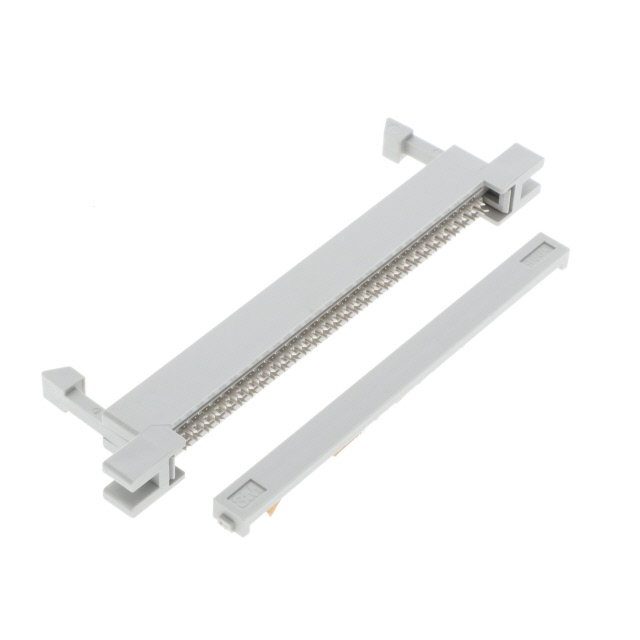

HEADER CONNECTOR,CABLE MOUNT,RECEPT,60 CONTACTS,PIN,0.1 PITCH,IDC TERMINAL,LATCH & EJECT ROHS COMPLIANT: YES

Part	Color	Wire Type	Contact Type	Features	Fastening Type	Contact Finish	Row Spacing	Row Spacing	Number of Rows [custom]	Number of Positions	Mounting Type	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Cable Termination
3M Electronic Specialty 4660-6305	Gray	Discrete Ribbon Cable	Male Pin	Feed Through	Latch Lock/Eject Hooks Long	Gold	2.54 mm	0.1 "	2	60	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	0.1 "	2.54 mm	30 Áin	0.76 Ám	Plug	IDC
3M Electronic Specialty 4660-6301	Gray	Discrete Ribbon Cable	Male Pin	Feed Through	Latch Lock/Eject Hooks Long	Gold	2.54 mm	0.1 "	2	60	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	0.1 "	2.54 mm	30 Áin	0.76 Ám	Plug	IDC
3M Electronic Specialty 4660-6205	Gray	Discrete Ribbon Cable	Male Pin	Feed Through	Latch Lock/Eject Hooks	Gold	2.54 mm	0.1 "	2	60	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	0.1 "	2.54 mm	30 Áin	0.76 Ám	Plug	IDC
3M Electronic Specialty 4660-6201	Gray	Discrete Ribbon Cable	Male Pin	Feed Through	Latch Lock/Eject Hooks	Gold	2.54 mm	0.1 "	2	60	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	0.1 "	2.54 mm	30 Áin	0.76 Ám	Plug	IDC
3M Electronic Specialty 4660-6300	Gray	Discrete Ribbon Cable	Male Pin	Feed Through	Latch Lock/Eject Hooks Long	Gold	2.54 mm	0.1 "	2	60	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	0.1 "	2.54 mm	30 Áin	0.76 Ám	Plug	IDC
3M Electronic Specialty 4660-7001	Gray	Discrete Ribbon Cable	Male Pin	Closed End		Gold	2.54 mm	0.1 "	2	60	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	0.1 "	2.54 mm	30 Áin	0.76 Ám	Plug	IDC
