DG23 Series

Catalog

SWITCH SNAP ACT SPDT 0.05A 30V

Part	Differential Travel	Differential Travel	Mechanical Life	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Termination Style	Mounting Type	Electrical Life	Overtravel [custom]	Overtravel [custom]	Operating Force	Circuit	Voltage Rating - DC	Operating Position	Operating Position	Switch Function	Current Rating (Amps)	Actuator Type

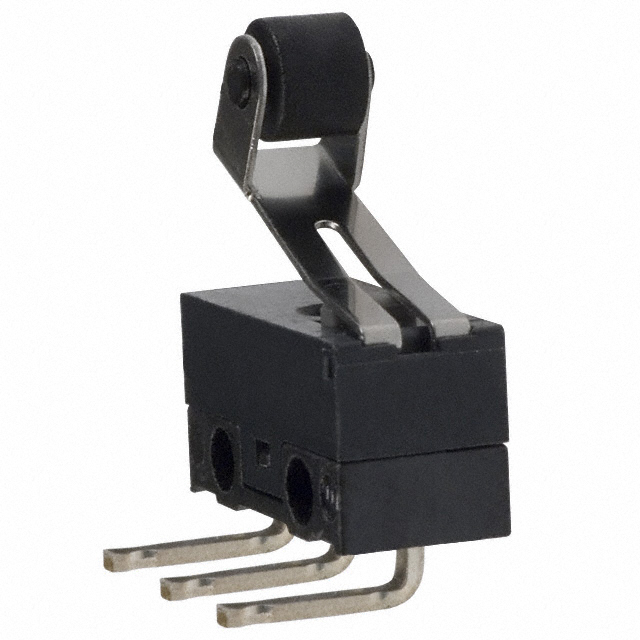

ZF Electronics DG23-B2RA	0.5 mm 0.51 mm	0.02 in	1000000 Cycles	IP40	85 °C	-25 °C	0.06 in	1.5 mm	PC Pin	Right Angle Through Hole	200000 Cycles	0.022 "	0.55 mm	60 gf	SPDT	30 V	0.488 in	12.4 mm	On-Mom	50 mA	Lever Roller

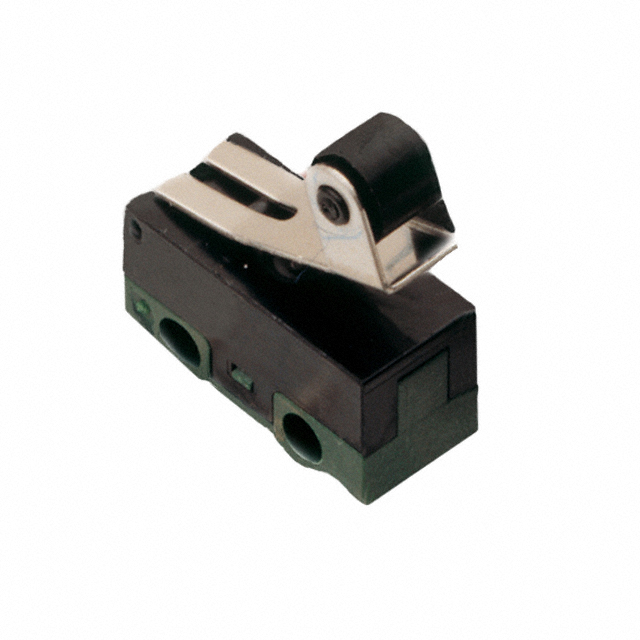

ZF Electronics DG23-B3RA	0.5 mm	0.02 in	1000000 Cycles	IP40	85 °C	-25 °C	0.06 in	1.5 mm	PC Pin	Right Angle Through Hole	200000 Cycles	0.022 "	0.55 mm	60 gf	SPDT	30 V	0.488 in	12.4 mm	On-Mom	50 mA	Lever Roller

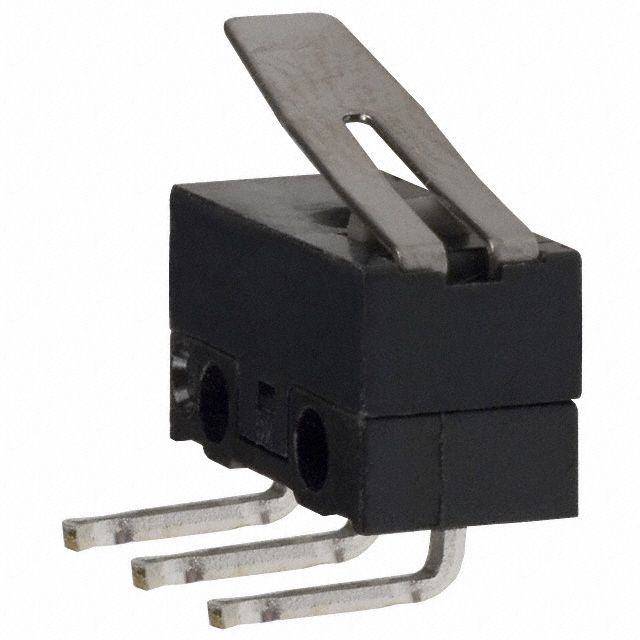

ZF Electronics DG23-B3LA	0.5 mm	0.02 in	1000000 Cycles	IP40	85 °C	-25 °C	0.071 "	1.8 mm	PC Pin	Right Angle Through Hole	200000 Cycles	0.022 "	0.55 mm		SPDT	30 V	0.268 in	6.8 mm	On-Mom	50 mA	Lever Straight

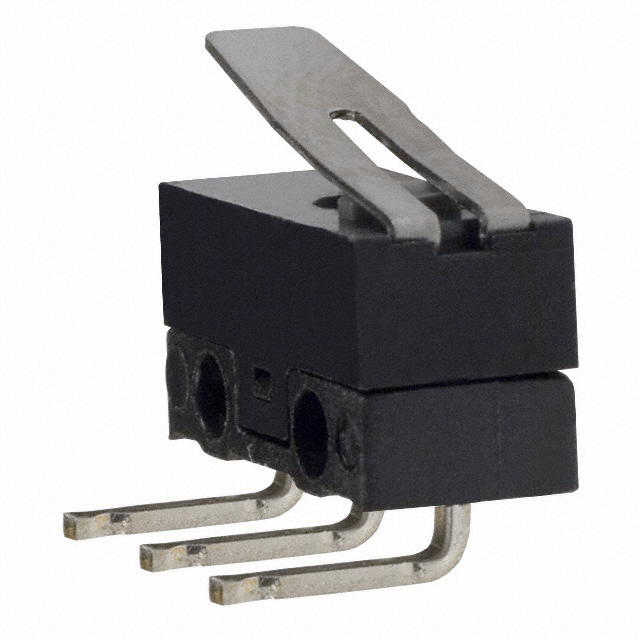

ZF Electronics DG23-B2LA	0.5 mm	0.02 in	1000000 Cycles	IP40	85 °C	-25 °C	0.071 "	1.8 mm	PC Pin	Right Angle Through Hole	200000 Cycles	0.022 "	0.55 mm		SPDT	30 V	0.268 in	6.8 mm	On-Mom	50 mA	Lever Straight

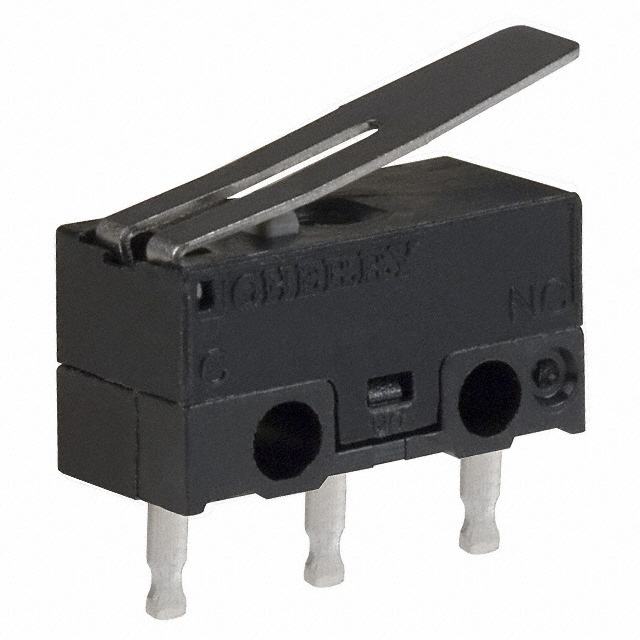

ZF Electronics DG23-B1LA	0.5 mm	0.02 in	1000000 Cycles	IP40	85 °C	-25 °C	0.071 "	1.8 mm	PC Pin	Through Hole	200000 Cycles	0.022 "	0.55 mm		SPDT	30 V	0.268 in	6.8 mm	On-Mom	50 mA	Lever Straight

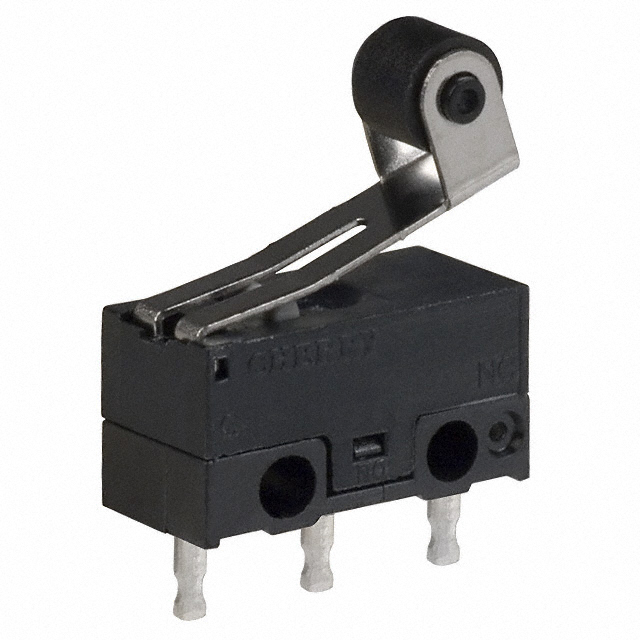

ZF Electronics DG23-B1RA	0.5 mm	0.02 in	1000000 Cycles	IP40	85 °C	-25 °C	0.06 in	1.5 mm	PC Pin	Through Hole	200000 Cycles	0.022 "	0.55 mm	60 gf	SPDT	30 V	0.488 in	12.4 mm	On-Mom	50 mA	Lever Roller
